PF2D560MSD1020F4R

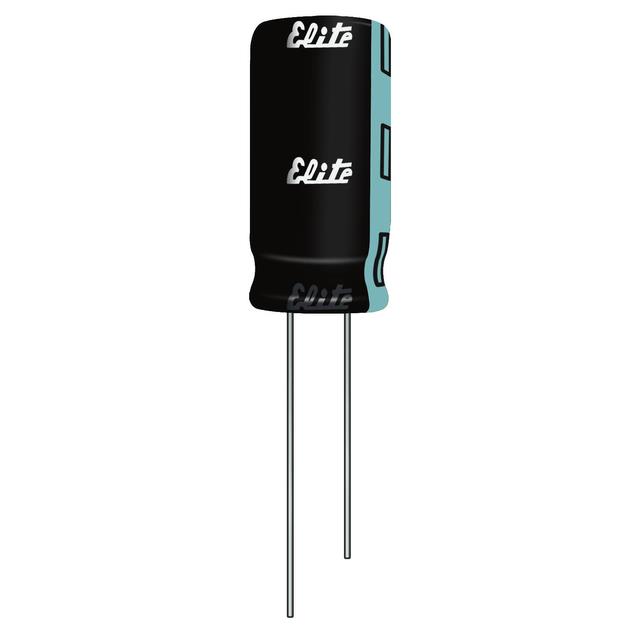

lmages are for reference only.PF2D560MSD1020F4R
CAP ALUM 56UF 20% 200V RADIAL TH
DatasheetRadial, Can
92,123 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
56 µF 200 V Aluminum Electrolytic Capacitors Radial, Can 4000 Hrs @ 105°C
PF2D560MSD1020F4R
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PF |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 760 mA @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | - |
| Product Attribute | |
 |
|
 |
| Part Number | PF2D560MSD1020F4R | PF0J102MPN1009 | PF0J102MPN1009 | PF0J222MPN1020 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 56UF 20% 200V RADIAL TH | CAP ALUM 1000UF 20% 6.3V RADIAL | CAP ALUM 1000UF 20% 6.3V RADIAL | CAP ALUM 2200UF 20% 6.3V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
