PFC130156B-471K

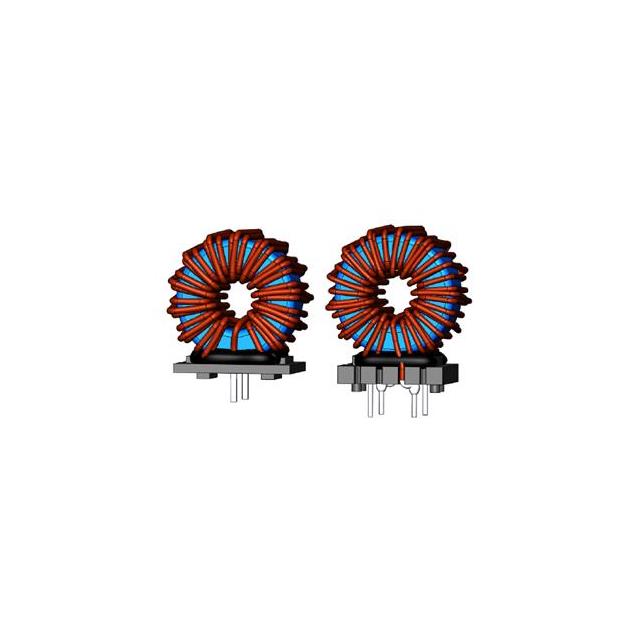

lmages are for reference only.PFC130156B-471K
PFC CHOKE 470.0UH 11.6AMP 108 M
DatasheetVertical, 4 PC Pin
17,218 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Unshielded Toroidal Inductor 5.1 A 108mOhm Max Vertical, 4 PC Pin
PFC130156B-471K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC130156B |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy Powder |
| Inductance | 470 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 5.1 A |
| Current - Saturation (Isat) | 5.9A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 108mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 1.280" L x 0.709" W (32.50mm x 18.00mm) |
| Height - Seated (Max) | 1.535" (39.00mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |
| Part Number | PFC130156B-471K | PFC130156B-101K | PFC130156B-101K | PFC130156B-102K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | PFC CHOKE 470.0UH 11.6AMP 108 M | PFC CHOKE 100.0UH 24.8A 23.0 M | PFC CHOKE 100.0UH 24.8A 23.0 M | PFC CHOKE 1000.0UH 7.9AMP 255M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
