PFC212236A-821K

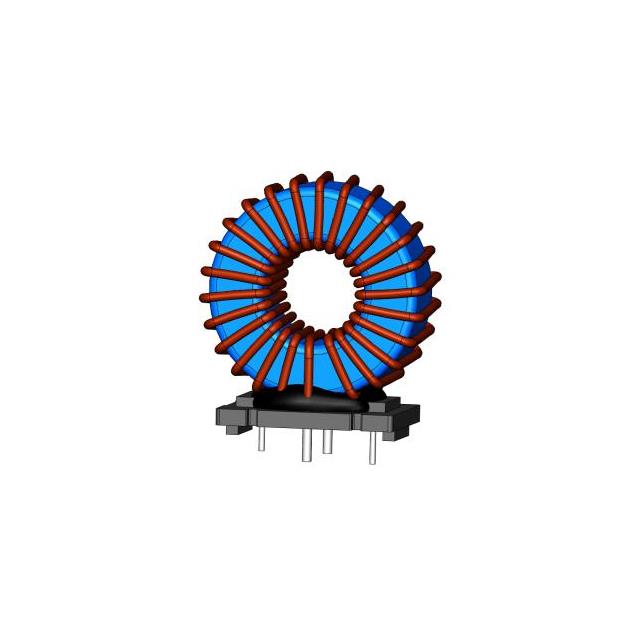

lmages are for reference only.PFC212236A-821K
DIP PFC CHOKE 820UH 81.0M 19.9A
DatasheetRadical, Vertical, 4 Leads (Open)
19,342 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
820 µH Shielded Toroidal Inductor 10.1 A 81mOhm Radical, Vertical, 4 Leads (Open)
PFC212236A-821K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC212236A |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Type | Toroidal |
| Material - Core | Alloy |
| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 10.1 A |
| Current - Saturation (Isat) | 19.9A |
| Shielding | Shielded |
| DC Resistance (DCR) | 81mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | - |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radical, Vertical, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | - |
| Height - Seated (Max) | 2.370" (60.20mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | PFC212236A-101K | PFC212236A-101K | PFC212236A-102K | PFC212236A-102K |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 105uH to 1000uH, 10% , 14.5mOhm | 105uH to 1000uH, 10% , 14.5mOhm | 1000uH, 10%, 106.5mOhm, 18.0Amp | 1000uH, 10%, 106.5mOhm, 18.0Amp |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |
