PFC333232DH-661MHF
lmages are for reference only.PFC333232DH-661MHF
PFC CHOKE 660.0UH 14.8A 173.7M
DatasheetRadial, Horizontal, 4 Leads
66,609 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
660 µH Unshielded Wirewound Inductor 5.8 A 173.7mOhm Max Radial, Horizontal, 4 Leads
PFC333232DH-661MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC333232DH |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 660 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.8 A |
| Current - Saturation (Isat) | 7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 173.7mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Horizontal, 4 Leads |
| Supplier Device Package | Radial |
| Size / Dimension | 1.299" L x 1.259" W (33.00mm x 32.00mm) |
| Height - Seated (Max) | 1.244" (31.60mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFC333232DH-102MHF | PFC333232DH-142MHF | PFC333232DH-162MHF | PFC333232DH-231MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |

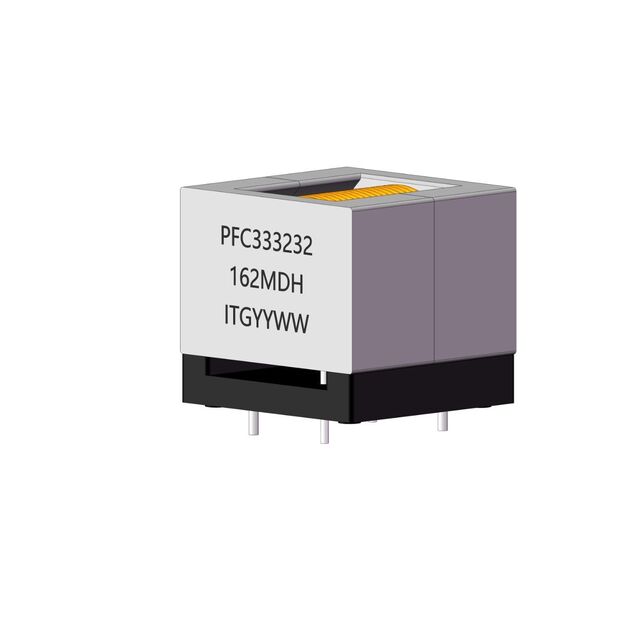

| Description | PFC CHOKE 1050.0UH 11.6A 256.2M | PFC CHOKE 1400.0UH 10.1A 362.5M | PFC CHOKE 1600.0UH 9.6A 466.2M | PFC CHOKE 230.0UH 25.1A 56.3M |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
