PFC383637B-231MHF
lmages are for reference only.PFC383637B-231MHF
PFC CHOKE 230.0UH 29.2AMP 14.2M
DatasheetVertical, 4 PC Pin
17,957 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
230 µH Unshielded Wirewound Inductor 22.2 A 14.2mOhm Vertical, 4 PC Pin
PFC383637B-231MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PFC |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | Wirewound |
| Material - Core | Alloy Powder |
| Inductance | 230 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 22.2 A |
| Current - Saturation (Isat) | 15A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 14.2mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 150°C |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 4 PC Pin |
| Supplier Device Package | Vertical, 4 PC Pin |
| Size / Dimension | 1.476" L x 1.437" W (37.50mm x 36.50mm) |
| Height - Seated (Max) | 1.417" (36.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

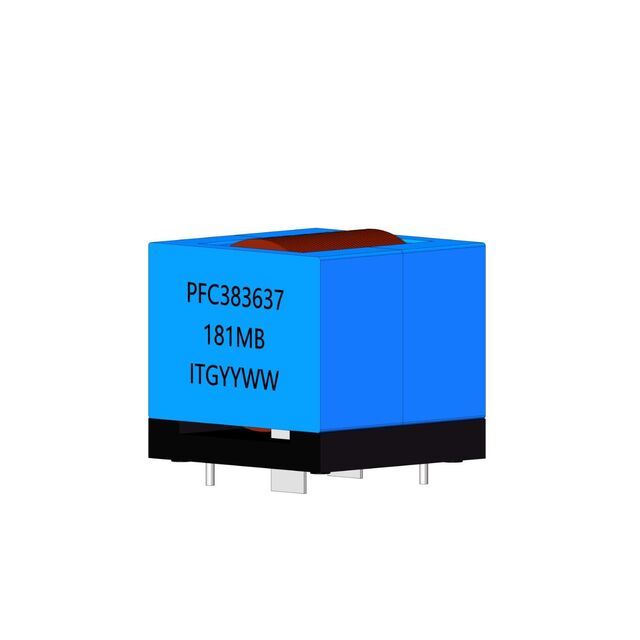

| Part Number | PFC383637B-181MHF | PFC383637B-181MHF | PFC383637B-361MHF | PF0382.104NLT |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | Pulse Electronics |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | PFC CHOKE 185.0UH 32.4AMP 11.0M | PFC CHOKE 185.0UH 32.4AMP 11.0M | PFC CHOKE 360.0UH 23.3A 22.0M | FIXED IND 100UH 1.5A 200MOHM SMD |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | Pulse Electronics |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
