PFMF.050.2

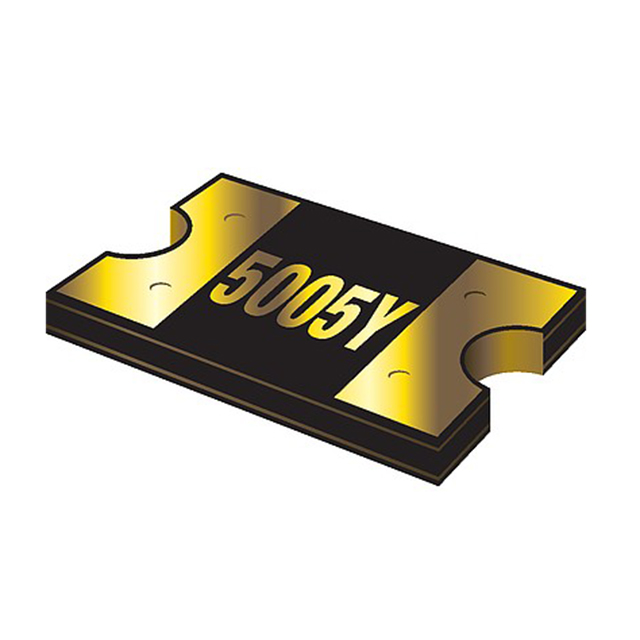

lmages are for reference only.PFMF.050.2
PTC RESET FUSE 15V 500MA 1812
Datasheet1812 (4532 Metric), Concave
69,739 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 15V 500 mA Ih Surface Mount 1812 (4532 Metric), Concave
PFMF.050.2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | PFMF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 15V |
| Current - Hold (Ih) (Max) | 500 mA |
| Current - Trip (It) | 1 A |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric), Concave |
| Size / Dimension | 0.179" L x 0.128" W (4.55mm x 3.24mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 150 ms |
| Resistance - Initial (Ri) (Min) | 150 mOhms |
| Resistance - Post Trip (R1) (Max) | 1 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | PFMF.050 |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFMF.010.2 | PFMF.014.2 | PFMF.020.2 | PFMF.030.2 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 60V 100MA 1812 | PTC RESET FUSE 60V 140MA 1812 | PTC RESET FUSE 30V 200MA 1812 | PTC RESET FUSE 30V 300MA 1812 |
| Series | PFMF | PFMF | PFMF | PFMF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
