PFNF.035.2

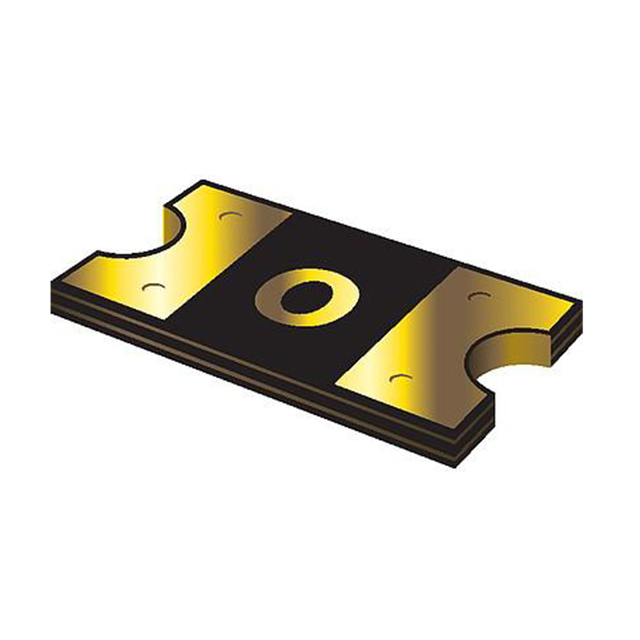

lmages are for reference only.PFNF.035.2
PTC RESET FUSE 6V 350MA 1206
Datasheet1206 (3216 Metric), Concave
14,897 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Polymeric PTC Resettable Fuse 6V 350 mA Ih Surface Mount 1206 (3216 Metric), Concave
PFNF.035.2
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | PFNF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Type | Polymeric |
| Voltage - Max | 6V |
| Current - Hold (Ih) (Max) | 350 mA |
| Current - Trip (It) | 750 mA |
| Current - Max | 100 A |
| Resistance - 25°C (Typ) | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric), Concave |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.033" (0.85mm) |
| Lead Spacing | - |
| Approval Agency | cURus, TUV |
| Time to Trip | 100 ms |
| Resistance - Initial (Ri) (Min) | 300 mOhms |
| Resistance - Post Trip (R1) (Max) | 1.2 Ohms |
| Grade | - |
| Qualification | - |
| Base Product Number | PFNF.035 |
| Product Attribute |  |
 |
 |
 |
| Part Number | PFNF.012.2 | PFNF.020.2 | PFNF.050.2 | PFNF.075.2 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | PTC RESET FUSE 30V 120MA 1206 | PTC RESET FUSE 24V 200MA 1206 | PTC RESET FUSE 13.2V 500MA 1206 | PTC RESET FUSE 6V 750MA 1206 |
| Series | PFNF | PFNF | PFNF | PFNF |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> | Tape & Reel (TR)-->Cut Tape (CT)--> |
