Part Number
PG0085.472NL
Manufacturer
Pulse ElectronicsDescription
FIXED IND 4.7UH 860MA 100MOHM SM
Datasheet
Datasheet
Package
Nonstandard
In Stock
44,136 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PG0085.472NL
lmages are for reference only.PG0085.472NL
FIXED IND 4.7UH 860MA 100MOHM SM
Nonstandard
44,136 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7 µH Shielded Wirewound Inductor 860 mA 100mOhm Max Nonstandard
PG0085.472NL
Category | Inductors, Coils, Chokes - Fixed Inductors - |
Manufacturer | Pulse Electronics |
Series | PG0085NL |
Packaging | Tray |
RoHS Status | ROHS3 Compliant |
Type | Wirewound |
Material - Core | - |
Inductance | 4.7 µH |
Tolerance | ±20% |
Current Rating (Amps) | 860 mA |
Current - Saturation (Isat) | 860mA |
Shielding | Shielded |
DC Resistance (DCR) | 100mOhm Max |
Q @ Freq | - |
Frequency - Self Resonant | 40MHz |
Ratings | - |
Operating Temperature | -40°C ~ 130°C |
Inductance Frequency - Test | 100 kHz |
Features | - |
Mounting Type | Surface Mount |
Package / Case | Nonstandard |
Supplier Device Package | - |
Size / Dimension | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
Height - Seated (Max) | 0.071" (1.80mm) |
Base Product Number | - |
Product Attribute | ![]() |
![]() |
![]() |
![]() |

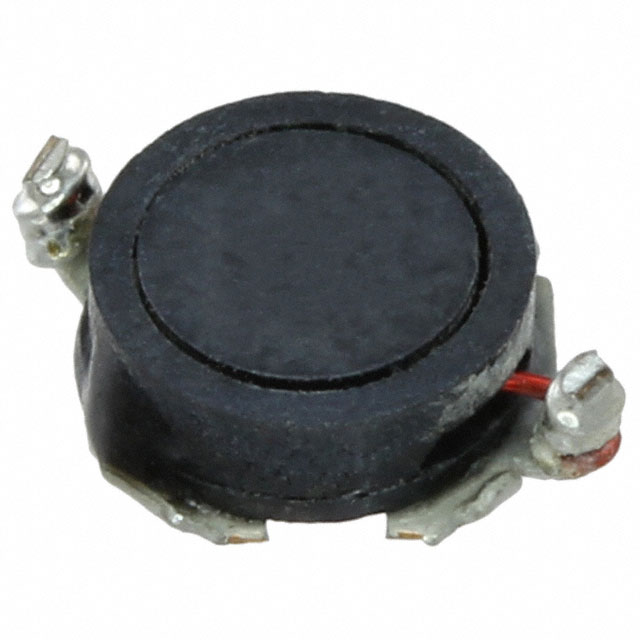

Part Number | PG0085.473NL | PG0085.102NL | PG0085.103NL | PG0085.103NLT |
Manufacturer | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
Description | FIXED IND 47UH 280MA 780MOHM SMD | FIXED IND 1UH 1.5A 33 MOHM SMD | FIXED IND 10UH 550MA 182MOHM SMD | FIXED IND 10UH 550MA 182MOHM SMD |
Series | Pulse Electronics | Pulse Electronics | Pulse Electronics | Pulse Electronics |
Packaging | Tray | Tray | Tray | Tape & Reel (TR) |
