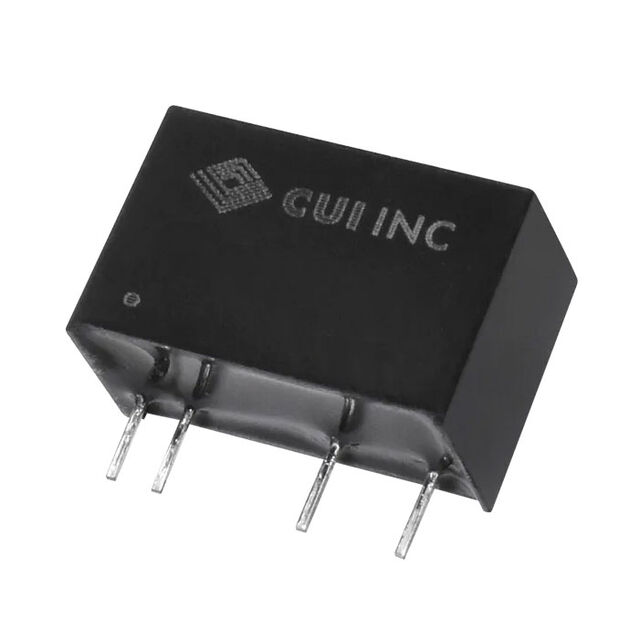

Isolated Module DC DC Converter 1 Output 24V 42mA 21.6V - 26.4V Input
PGNM1-S24-S24-S
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PGNM1-S (1W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21.6V |
| Voltage - Input (Max) | 26.4V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 42mA |
| Power (Watts) | 1 W |
| Applications | ITE (Commercial), Medical |
| Features | - |
| Operating Temperature | -40°C ~ 105°C (With Derating) |
| Efficiency | 76% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module, 4 Leads |
| Size / Dimension | 0.77" L x 0.39" W x 0.49" H (19.5mm x 9.8mm x 12.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, cURus, UKCA |
| Standard Number | 60601-1; 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | PGNM1-S24-D12-S | PGNM1-S24-D15-S | PGNM1-S24-D5-S | PGNM1-S24-D9-S |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC-DC ISOLATED, 1 W, 21.6~26.4 V | DC-DC ISOLATED, 1 W, 21.6~26.4 V | DC-DC ISOLATED, 1 W, 21.6~26.4 V | DC-DC ISOLATED, 1 W, 21.6~26.4 V |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
