PHM12NQ20T,518
Manufacturer
NXP USA Inc.Description
MOSFET N-CH 200V 14.4A 8HVSON
Datasheet
DatasheetPackage
8-VDFN Exposed Pad
In Stock
25,453 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PHM12NQ20T,518
PHM12NQ20T,518

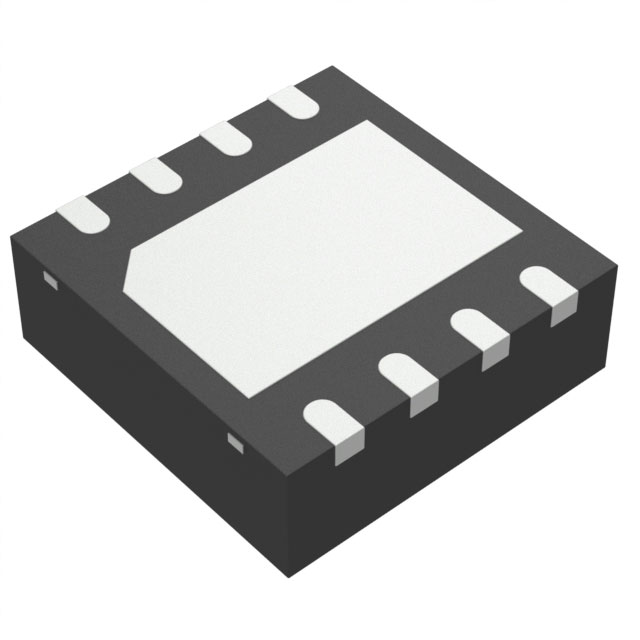

lmages are for reference only.Payment Methods
Delivery Services
N-Channel 200 V 14.4A (Tc) 62.5W (Tc) Surface Mount 8-HVSON (5x6)
Quick Inquiry
PHM12NQ20T,518
Specifications
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | NXP USA Inc. |
| Series | TrenchMOS™ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 14.4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V |
| Rds On (Max) @ Id, Vgs | 130mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1230 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 62.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-HVSON (5x6) |
| Package / Case | 8-VDFN Exposed Pad |
| Base Product Number | PHM12 |
| Gate Charge (Qg) (Max) @ Vgs | 26 nC @ 10 V |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PHM15NQ20T,518 | PHM18NQ15T,518 | BS170PSTOA | AUIRF4104S |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Diodes Incorporated | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 200V 17.5A 8HVSON | MOSFET N-CH 150V 19A 8HVSON | MOSFET N-CH 60V 270MA E-LINE | MOSFET N-CH 40V 75A D2PAK |
| Series | TrenchMOS™ | TrenchMOS™ | - | HEXFET® |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
