PHP00603E6421BBT1

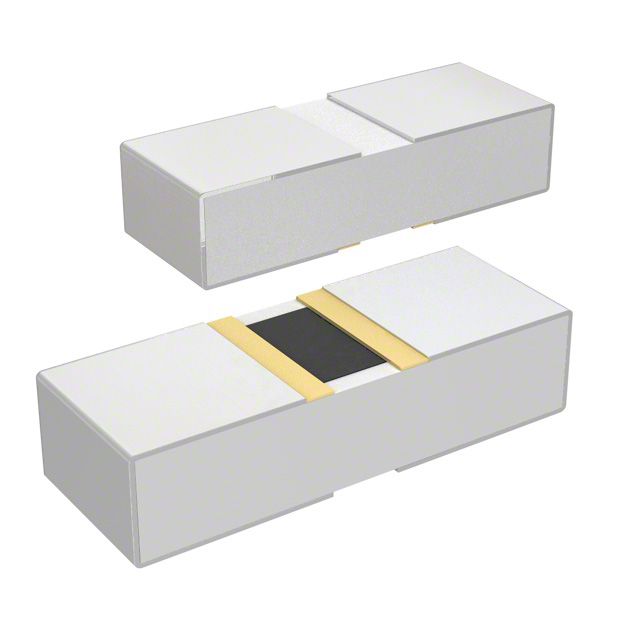

lmages are for reference only.PHP00603E6421BBT1
RES SMD 6.42K OHM 0.1% 3/8W 0603
Datasheet0603 (1608 Metric)
53,584 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.42 kOhms ±0.1% 0.375W, 3/8W Chip Resistor 0603 (1608 Metric) Flame Proof, Moisture Resistant, Safety Thin Film
PHP00603E6421BBT1
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | PHP |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Resistance | 6.42 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.375W, 3/8W |
| Composition | Thin Film |
| Features | Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 155°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PHP00603E6421BST1 | PHP00603E6420BBT1 | PHP00603E6420BST1 | PHP00603E6490BBT1 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | RES SMD 6.42K OHM 0.1% 3/8W 0603 | RES SMD 642 OHM 0.1% 3/8W 0603 | RES SMD 642 OHM 0.1% 3/8W 0603 | RES SMD 649 OHM 0.1% 3/8W 0603 |
| Series | Vishay Dale Thin Film | |||
| Packaging | Tape & Reel (TR) |
