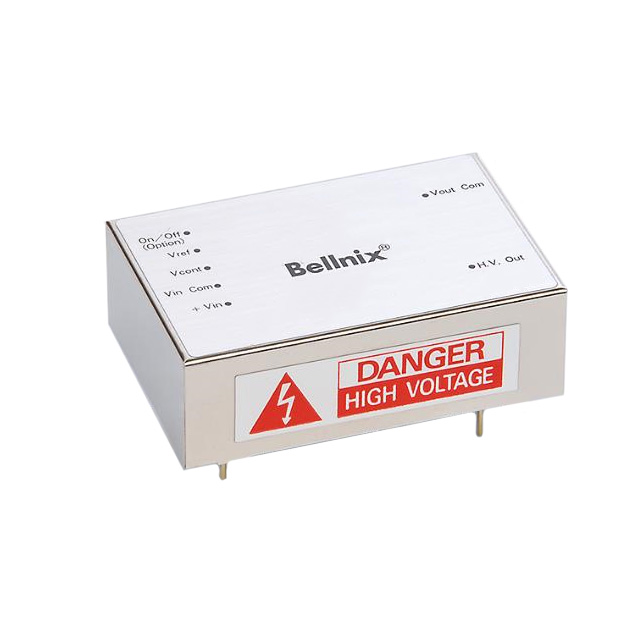

PHV12-2.0K2500N
lmages are for reference only.PHV12-2.0K2500N
DC DC CONVERTER -2000V 5W
Datasheet7-DIP Module, 6 Leads
13,376 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
High Voltage - Non-Isolated Module DC DC Converter 1 Output -2000V 2.5mA 10.8V - 16.5V Input
PHV12-2.0K2500N
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bellnix Co., Ltd. |
| Series | PHV |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Type | High Voltage - Non-Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 16.5V |
| Voltage - Output 1 | -2000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -10°C ~ 50°C (With Derating) |
| Efficiency | 72% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 6 Leads |
| Size / Dimension | 2.36" L x 1.57" W x 0.79" H (60.0mm x 40.0mm x 20.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PHV12 |
| Voltage - Isolation | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PHV12-2.0K2500NR | PHV12-2.0K2500P | PHV12-2.0K2500PR | PHV12-0.5K10000N |
| Manufacturer | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER -2000V 5W | DC DC CONVERTER 2000V 5W | DC DC CONVERTER -2000V 5W | DC DC CONVERTER -500V 5W |
| Series | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. | Bellnix Co., Ltd. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
