PI3EQX12908AZFEX
lmages are for reference only.PI3EQX12908AZFEX
IC REDRIVER 12GBPS 8CHAN 54TQFN
Datasheet54-WFQFN Exposed Pad
28,010 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buffer, ReDriver 8 Channel 12Gbps 54-TQFN (10x5.5)
PI3EQX12908AZFEX
| Category | Integrated Circuits (ICs) - Interface - Signal Buffers-Repeaters-Splitters |
| Manufacturer | Diodes Incorporated |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Buffer, ReDriver |
| Applications | PCIe |
| Input | CML |
| Output | CML |
| Data Rate (Max) | 12Gbps |
| Number of Channels | 8 |
| Delay Time | - |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Voltage - Supply | 3.3V |
| Current - Supply | - |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 54-WFQFN Exposed Pad |
| Supplier Device Package | 54-TQFN (10x5.5) |
| Base Product Number | PI3EQX12908 |
| Capacitance - Input | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

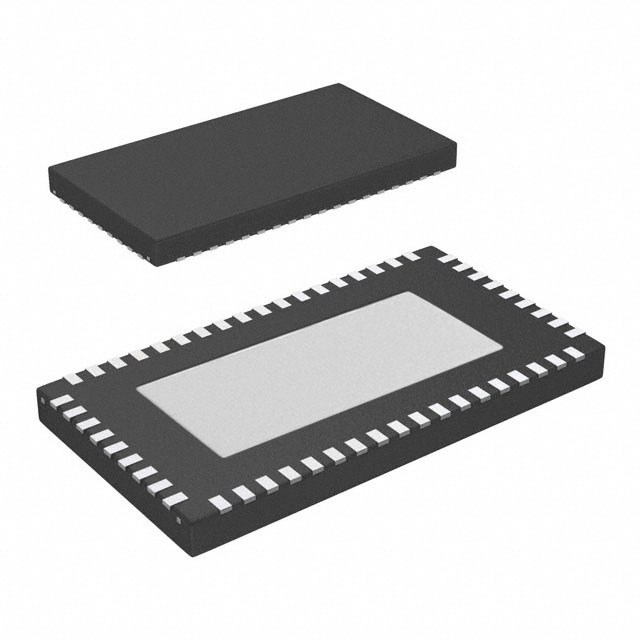

| Part Number | PI3EQX12908AZFE | PI3EQX12902AZLEX | PI3EQX12902BZLEX | PI3EQX12902EZLEX |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REDRIVER 8-CH 12G 20TSSOP | ICREDRIV PCIE3/SATA W-QFN2545-30 | IC REDRIVER 12.5 GBPS 30TQFN | SATA EQX W-QFN2545-30 T&R 3.5K |
| Series | - | - | - | - |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
