PIC16F1574-E/JQ
lmages are for reference only.PIC16F1574-E/JQ
IC MCU 8BIT 7KB FLASH 16UQFN
Datasheet16-UQFN Exposed Pad
65,281 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
PIC PIC® 16F Microcontroller IC 8-Bit 32MHz 7KB (4K x 14) FLASH 16-UQFN (4x4)
PIC16F1574-E/JQ
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Microchip Technology |
| Series | PIC® 16F |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Core Processor | PIC |
| Core Size | 8-Bit |
| Speed | 32MHz |
| Connectivity | LINbus, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT |
| Number of I/O | 12 |
| Program Memory Size | 7KB (4K x 14) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.3V ~ 5.5V |
| Data Converters | A/D 8x10b; D/A 1x5b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-UQFN (4x4) |
| Package / Case | 16-UQFN Exposed Pad |
| Base Product Number | PIC16F1574 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

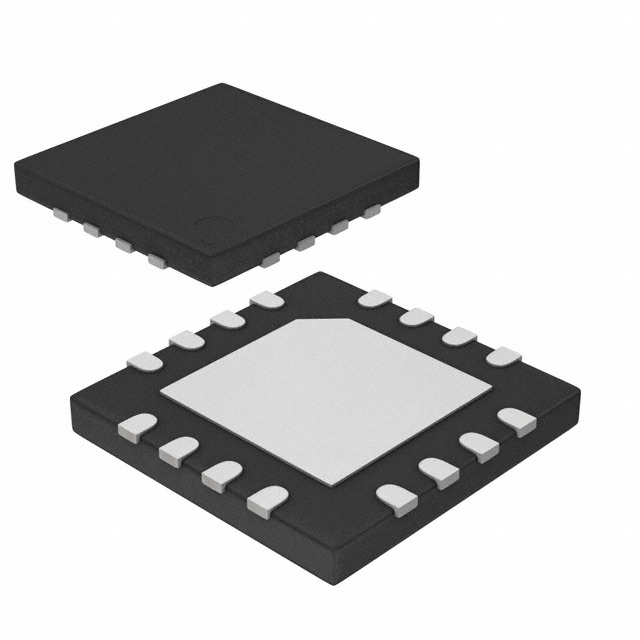

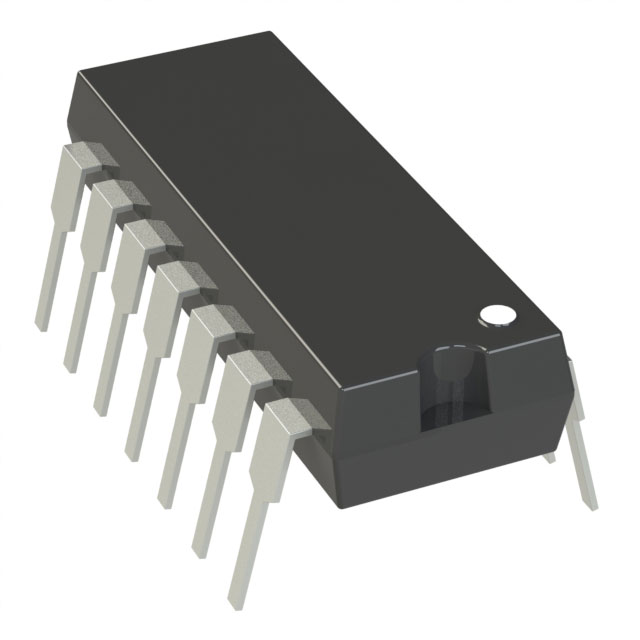

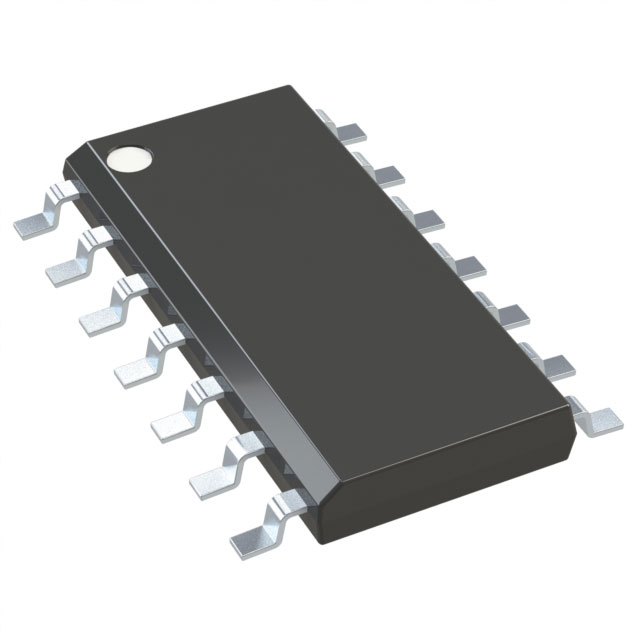

| Part Number | PIC16F1574-E/P | PIC16F1574-E/SL | PIC16F1574-E/ST | PIC16F1574-I/JQ |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 8BIT 7KB FLASH 14DIP | IC MCU 8BIT 7KB FLASH 14SOIC | IC MCU 8BIT 7KB FLASH 14TSSOP | IC MCU 8BIT 7KB FLASH 16UQFN |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tube | Tube | Tube | Tube |
