PJD4NA65_R2_00001

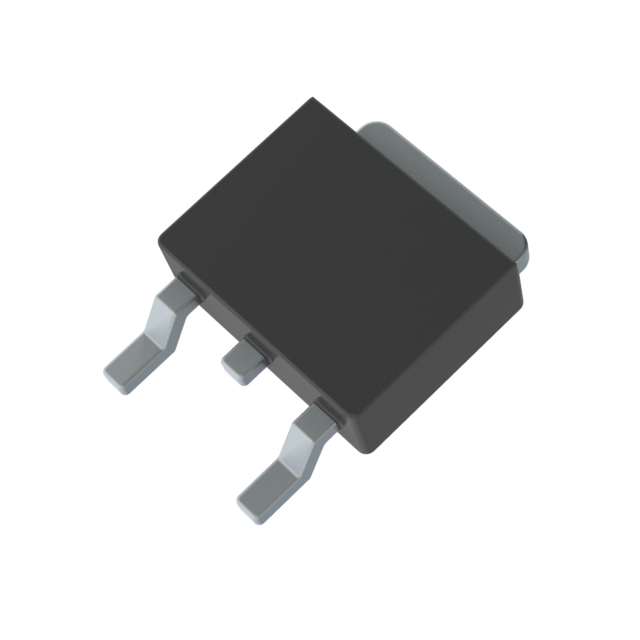

lmages are for reference only.PJD4NA65_R2_00001
650V N-CHANNEL MOSFET
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
32,836 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 4A (Ta) Surface Mount TO-252AA
PJD4NA65_R2_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.7Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 463 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252AA |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | PJD4NA65 |
| Gate Charge (Qg) (Max) @ Vgs | 11.4 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | PJD4NA60_L2_00001 | PJD4NA60_R2_00001 | PJD4NA65H_L2_00001 | PJD4NA65_L2_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V N-CHANNEL MOSFET | 600V N-CHANNEL MOSFET | 650V N-CHANNEL MOSFET | 650V N-CHANNEL MOSFET |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
