PJL9802_R2_00001

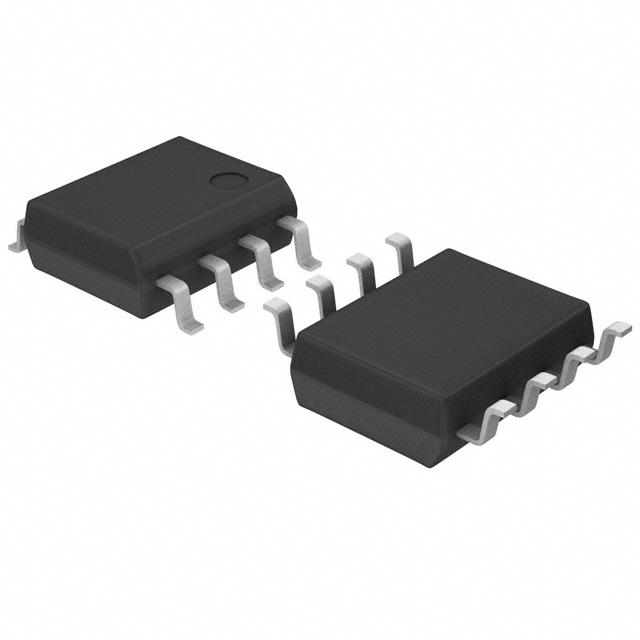

lmages are for reference only.PJL9802_R2_00001
MOSFET 2N-CH 30V 5A 8SOP
Datasheet8-SOIC (0.154", 3.90mm Width)
44,072 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 5A (Ta) 1.7W (Ta) Surface Mount 8-SOP
PJL9802_R2_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 2.1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 5.8nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 235pF @ 15V |
| Power - Max | 1.7W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | PJL9802 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PJL9801_R2_00001 | PJL9804_R2_00001 | PJL9807_R2_00001 | PJL9808_R2_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 30V 5A 8SOP | MOSFET 2N-CH 30V 6A 8SOP | MOSFET 2P-CH 30V 4A 8SOP | MOSFET 2N-CH 30V 8A 8SOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
