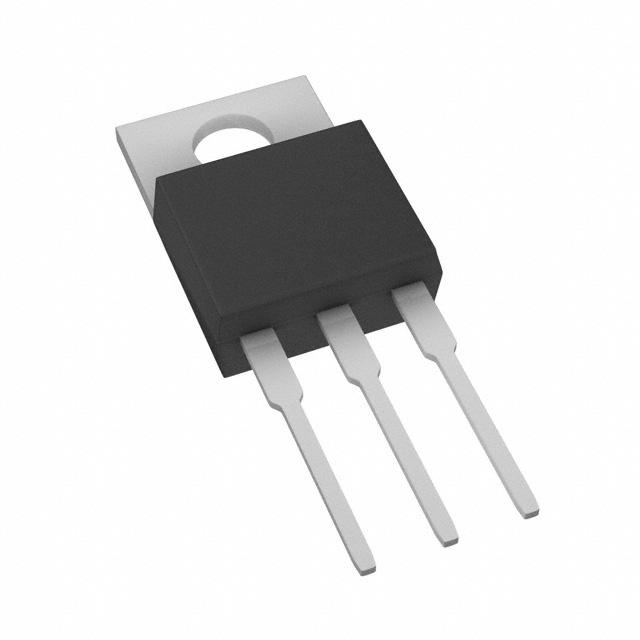

N-Channel 600 V 1.2A (Ta), 7A (Tc) 2W (Ta), 78W (Tc) Through Hole TO-220AB
PJP60R620E_T0_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 1.2A (Ta), 7A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 620mOhm @ 2.4A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 457 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2W (Ta), 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220AB |
| Package / Case | TO-220-3 |
| Base Product Number | PJP60R |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PJP60R190E_T0_00001 | PJP60R290E_T0_00001 | PJP60R390E_T0_00001 | PJP60R540E_T0_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V N-CHANNEL SUPER JUNCTION MO | 600V N-CHANNEL SUPER JUNCTION MO | 600V N-CHANNEL SUPER JUNCTION MO | 600V N-CHANNEL SUPER JUNCTION MO |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
