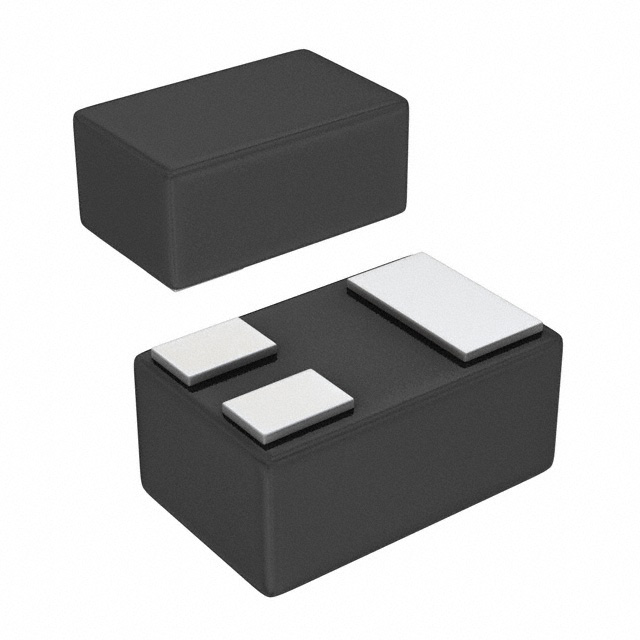

N-Channel 20 V 950mA (Ta) 500mW (Ta) Surface Mount DFN1006-3
PJQ1916_R1_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 950mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 46 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DFN1006-3 |
| Package / Case | 3-UFDFN |
| Base Product Number | PJQ1916 |
| Gate Charge (Qg) (Max) @ Vgs | 1.1 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PJQ1916_R1_00201 | PJQ1917_R1_00001 | PJQ1917_R1_00201 | PJQ4465AP-AU_R2_000A1 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 20V N-CHANNEL ENHANCEMENT MODE M | 20V P-CHANNEL ENHANCEMENT MODE M | 20V P-CHANNEL ENHANCEMENT MODE M | 60V P-CHANNEL ENHANCEMENT MODE M |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
