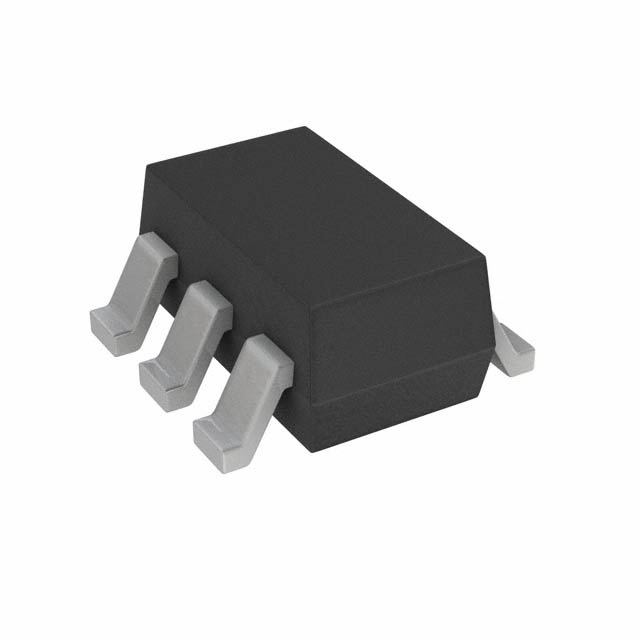

MOSFET 2N-CH 30V 3.9A SOT23-6
DatasheetSOT-23-6
48,460 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 30V 3.9A (Ta) 1.25W (Ta) Surface Mount SOT-23-6
PJS6800_S1_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel (Dual) |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 30V |
| Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) |
| Rds On (Max) @ Id, Vgs | 48mOhm @ 3.9A, 10V |
| Vgs(th) (Max) @ Id | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 11.3nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 490pF @ 15V |
| Power - Max | 1.25W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6 |
| Base Product Number | PJS6800 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PJS6801_S1_00001 | PJS6806_S1_00001 | PJS6809_S1_00001 | PSMN013-60HSX |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Nexperia USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 30V 3.2A SOT23-6 | MOSFET 2N-CH 30V 4A SOT23-6 | MOSFET 2P-CH 30V 2.6A SOT23-6 | MOSFET 2N-CH 60V 40A LFPAK56D |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
