600V N-CHANNEL MOSFET
DatasheetTO-261-4, TO-261AA
94,464 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services

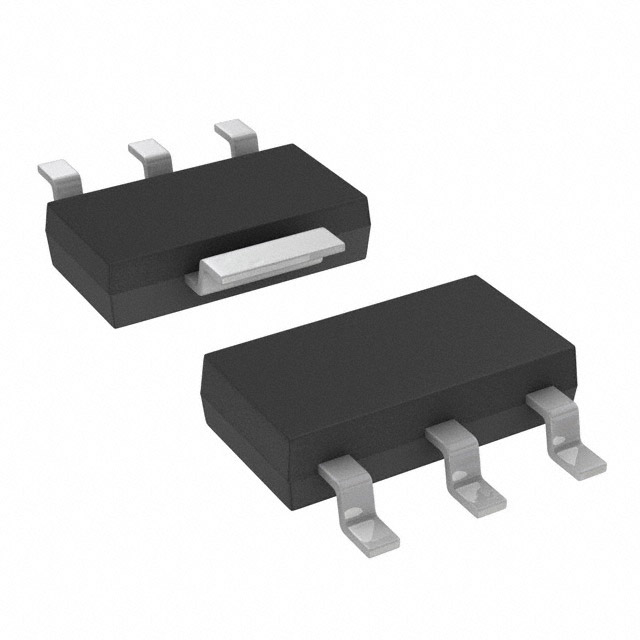

N-Channel 600 V 400mA (Ta) 3.3W (Tc) Surface Mount SOT-223
PJW1NA60B_R2_00001
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 400mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 10Ohm @ 500mA, 10V |
| Vgs(th) (Max) @ Id | 3.5V @ 250µA |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 210 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.3W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-223 |
| Package / Case | TO-261-4, TO-261AA |
| Base Product Number | PJW1NA60B |
| Gate Charge (Qg) (Max) @ Vgs | 6.1 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | PJW1NA60A_R2_00001 | PJW1NA60_R2_00001 | PJW1NA50_R2_00001 | PJW2P10A_R2_00001 |
| Manufacturer | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. | Panjit International Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V N-CHANNEL MOSFET | 600V N-CHANNEL MOSFET | 500V N-CHANNEL MOSFET | 100V P-CHANNEL ENHANCEMENT MODE |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
