PK2W680MND2225R

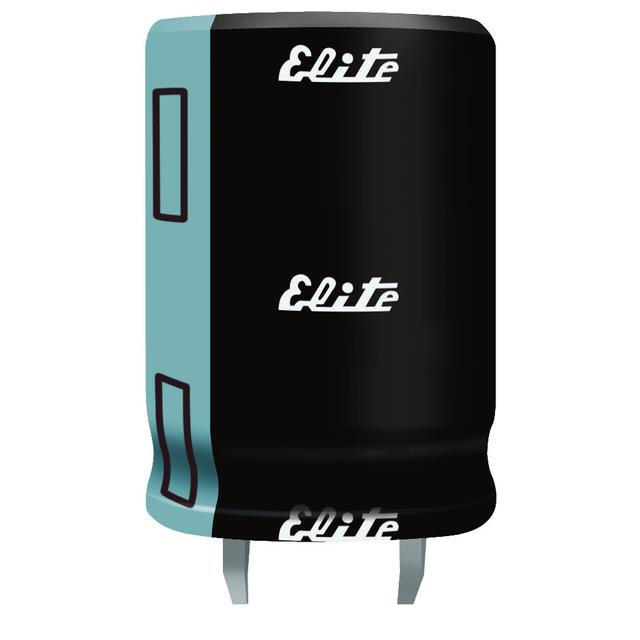

lmages are for reference only.PK2W680MND2225R
CAP ALUM 68UF 20% 450V SNAP TH
DatasheetRadial, Can - Snap-In
54,680 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
PK2W680MND2225R
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PK |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 858 mA @ 50 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | 2.23 Ohms |
| Product Attribute |  |
 |
 |
 |
| Part Number | PK2W681MND3050RY | 25YXM100MEFR6.3X11 | 16PX100MEFCTA5X11 | ECA-0JM101I |
| Manufacturer | Chinsan (Elite) | Rubycon | Rubycon | Panasonic Electronic Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680UF 20% 450V SNAP TH | CAP ALUM 100UF 20% 25V RADIAL TH | CAP ALUM 100UF 20% 16V RADIAL TH | CAP ALUM 100UF 20% 6.3V RADIAL |
| Series | Chinsan (Elite) | Rubycon | Rubycon | Panasonic Electronic Components |
| Packaging | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
