Product CatalogPart Number
PKJ7216HWPI
Manufacturer
Flex Power ModulesDescription
14-160 V48.659.4 V200 W3.7 A
Datasheet
DatasheetPackage
Half Brick
In Stock
99,633 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PKJ7216HWPI
PKJ7216HWPI
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 54V 3.7A 14V - 160V Input
Quick Inquiry
PKJ7216HWPI
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | PKJ 7200 (200W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3.7A |
| Power (Watts) | 200 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Half Brick |
| Size / Dimension | 2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm) |
| Supplier Device Package | Half Brick |
| Control Features | Enable, Active Low |
| Approval Agency | cURus, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 4 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

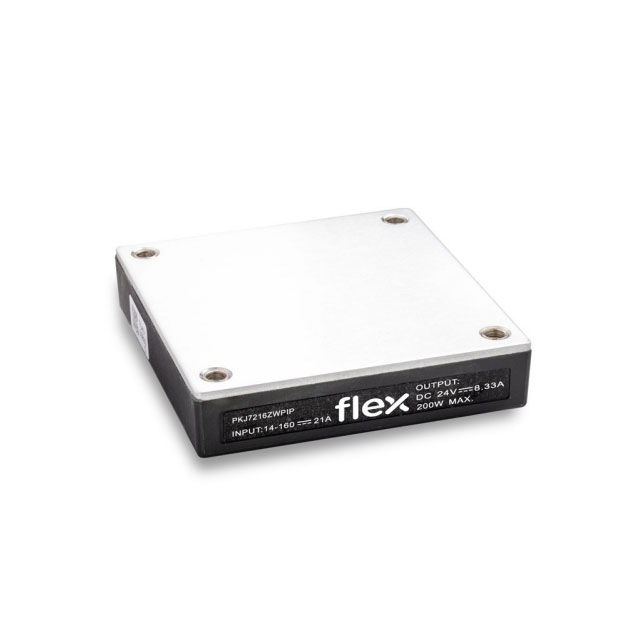

| Part Number | PKJ7213WPI | PKJ7215WPI | PKJ7216JWPI | PKJ7216JWPI |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 14-160 V10.813.2 V200 W16.67 A | 14160 VIN; 13.516.5 VOUT; 200 W; | 14-160 V43.252.8 V200 W4.16 A | 14-160 V43.252.8 V200 W4.16 A |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tray | Tray | Tray | Tray |
