Product CatalogPart Number
PKM7216ZAPIPLHS
Manufacturer
Flex Power ModulesDescription
DC DC CONVERTER 24V 150W
Datasheet
DatasheetPackage
Quarter Brick
In Stock
82,241 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PKM7216ZAPIPLHS
PKM7216ZAPIPLHS
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 6.25A 66V - 160V Input
Quick Inquiry
PKM7216ZAPIPLHS
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Flex Power Modules |
| Series | PKM 7000A (150W) |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 66V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 6.25A |
| Power (Watts) | 150 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 1.29" H (57.9mm x 36.8mm x 32.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active High |
| Approval Agency | CB, CSA, EN, IEC, TUV, UL |
| Standard Number | 50155; 62368-1 |
| Base Product Number | PKM721 |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

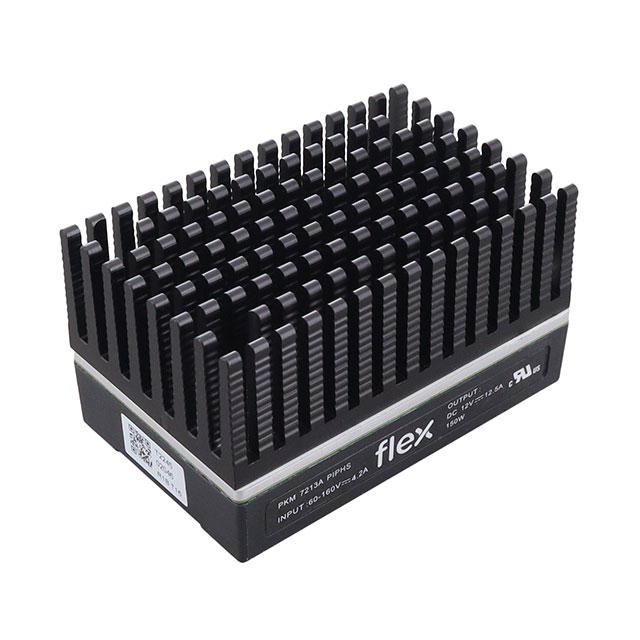

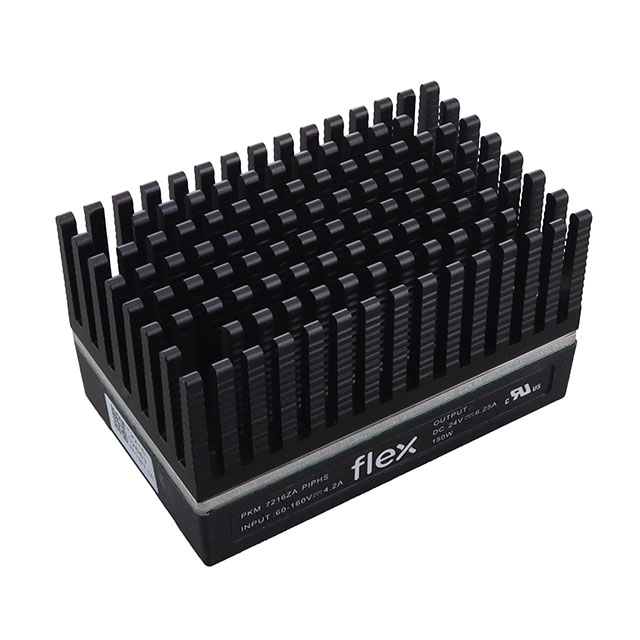

| Part Number | PKM7216ZAPIP | PKM7216ZAPIPHS | PKM7213APIP | PKM7213APIPHS |
| Manufacturer | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 150W | DC DC CONVERTER 24V 150W | DC DC CONVERTER 12V 150W | DC DC CONVERTER 12V 150W |
| Series | Flex Power Modules | Flex Power Modules | Flex Power Modules | Flex Power Modules |
| Packaging | Tray | Tray | Tray | Tray |
