PL2W221MND2545RP

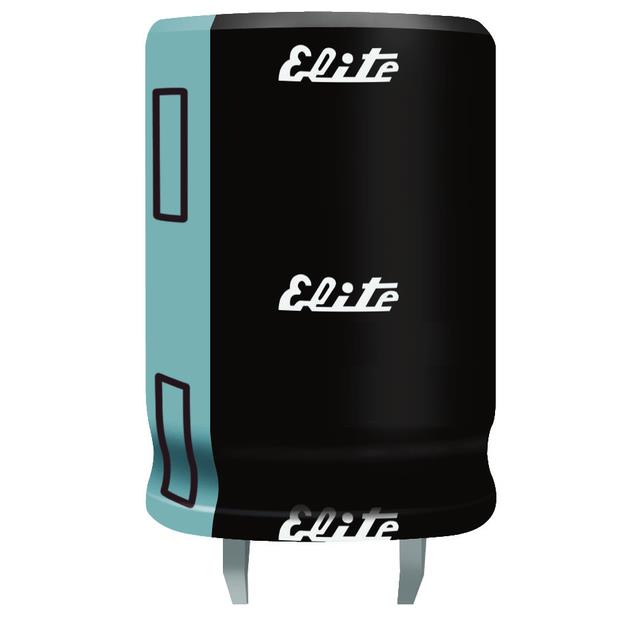

lmages are for reference only.PL2W221MND2545RP
CAP ALUM 220UF 20% 450V SNAP TH
DatasheetRadial, Can - Snap-In
70,936 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 1.06Ohm @ 120Hz 2000 Hrs @ 105°C
PL2W221MND2545RP
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | PL |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 1.06Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.43 A @ 100 kHz |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Base Product Number | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PL2W221MND2240Y | PL2W221MND2530 | PL2W221VND2245R | PEH534YDC3220M2 |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | KEMET |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 220UF 20% 450V SNAP TH | CAP ALUM 220UF 20% 450V SNAP TH | CAP ALUM 220UF 450V SNAP TH | CAP ALUM 220UF 20% 450V SNAP TH |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | KEMET |
| Packaging | Bulk | Bulk | Bulk | Bulk |
