Product CatalogPart Number
PL8200
Manufacturer
iNRCORE, LLCDescription
CMC 14A 2LN SMD
Datasheet
DatasheetPackage
Horizontal, 4 PC Pad
In Stock
66,759 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PL8200
PL8200

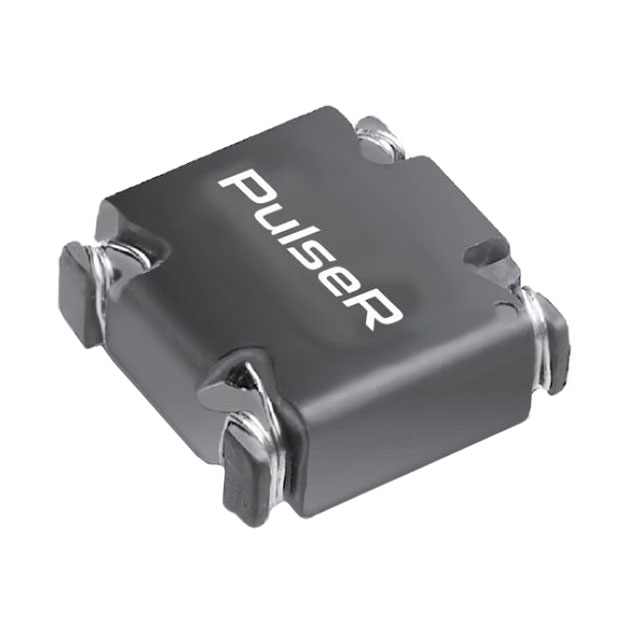

lmages are for reference only.Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 14A DCR 8mOhm
Quick Inquiry
PL8200
Specifications
| Category | Filters - Common Mode Chokes - |
| Manufacturer | iNRCORE, LLC |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 14A |
| DC Resistance (DCR) (Max) | 8mOhm |
| Voltage Rating - DC | - |
| Voltage Rating - AC | - |
| Operating Temperature | -55°C ~ 130°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Height (Max) | 0.500" (12.70mm) |
| Package / Case | Horizontal, 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | PL8200NL | PL8200NLT | PL8200T | PL8201 |
| Manufacturer | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | CMC 14A 2LN SMD | CMC 14A 2LN SMD | CMC 14A 2LN SMD | CMC 11.6A 2LN SMD |
| Series | SLIC | SLIC | - | SLIC |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
