Product CatalogPart Number
PL8301
Manufacturer
iNRCORE, LLCDescription
FIXED IND 28.7UH 12A 13.8 MOHM
Datasheet
DatasheetPackage
Nonstandard
In Stock
39,962 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PL8301
PL8301

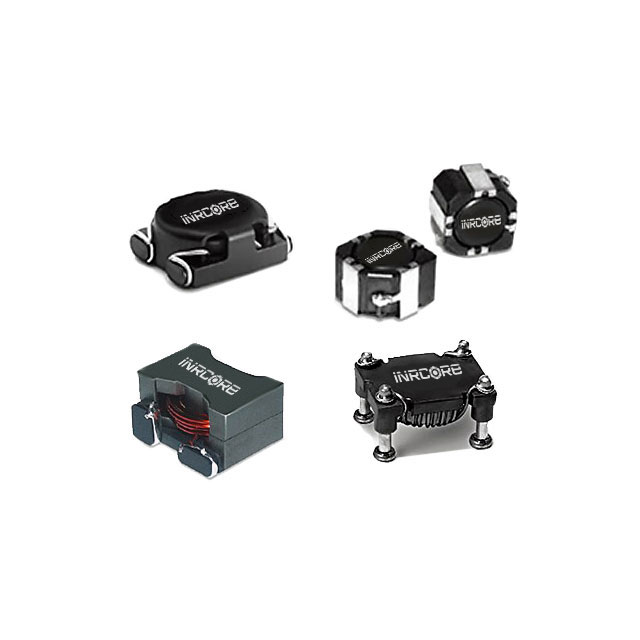

lmages are for reference only.Payment Methods
Delivery Services
28.7 µH Unshielded Toroidal Inductor 12 A 13.8mOhm Max Nonstandard
Quick Inquiry
PL8301
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | iNRCORE, LLC |
| Series | HCCI-80 |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Type | Toroidal |
| Material - Core | - |
| Inductance | 28.7 µH |
| Tolerance | - |
| Current Rating (Amps) | 12 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 13.8mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.220" L x 1.000" W (30.99mm x 25.40mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | PL8300 | PL8300 | PL8300NL | PL8300NLT |
| Manufacturer | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 38UH 9.5A 19.3MOHM SMD | FIXED IND 38UH 9.5A 19.3MOHM SMD | FIXED IND 38UH 9.5A 19.3MOHM SMD | FIXED IND 38UH 9.5A 19.3MOHM SMD |
| Series | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC | iNRCORE, LLC |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
