PLT0603Z1101LBTS

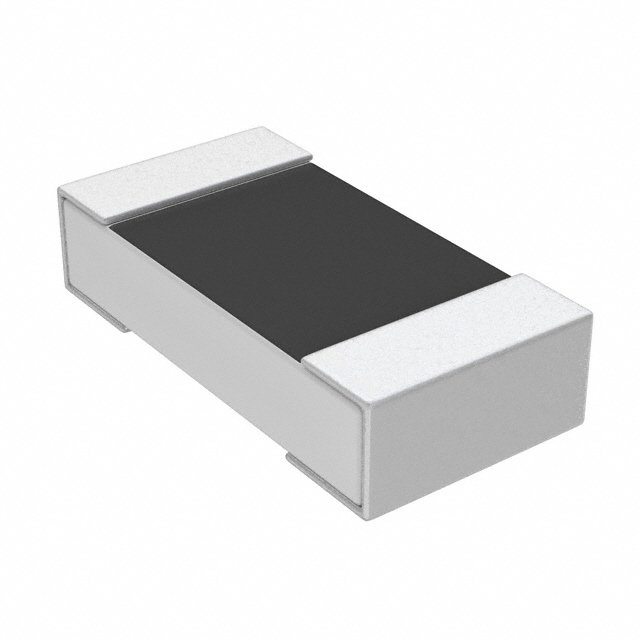

lmages are for reference only.PLT0603Z1101LBTS
RES SMD 1.1KOHM 0.01% 0.15W 0603
Datasheet0603 (1608 Metric)
87,205 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
1.1 kOhms ±0.01% 0.15W Chip Resistor 0603 (1608 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
PLT0603Z1101LBTS
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | PLT |
| Packaging | Strip |
| RoHS Status | RoHS non-compliant |
| Resistance | 1.1 kOhms |
| Tolerance | ±0.01% |
| Power (Watts) | 0.15W |
| Composition | Thin Film |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.064" L x 0.032" W (1.63mm x 0.81mm) |
| Height - Seated (Max) | 0.020" (0.51mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PLT0603Z1102LBTS | PLT0603Z1111LBTS | PLT0603Z1112LBTS | PLT0603Z1131LBTS |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES SMD 11K OHM 0.01% 0.15W 0603 | RES SMD 1.11K OHM 0.15W 0603 | RES SMD 11.1K OHM 0.15W 0603 | RES SMD 1.13K OHM 0.15W 0603 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | |
| Packaging | Strip | Strip | Strip |
