PLT0805Z1002AST5

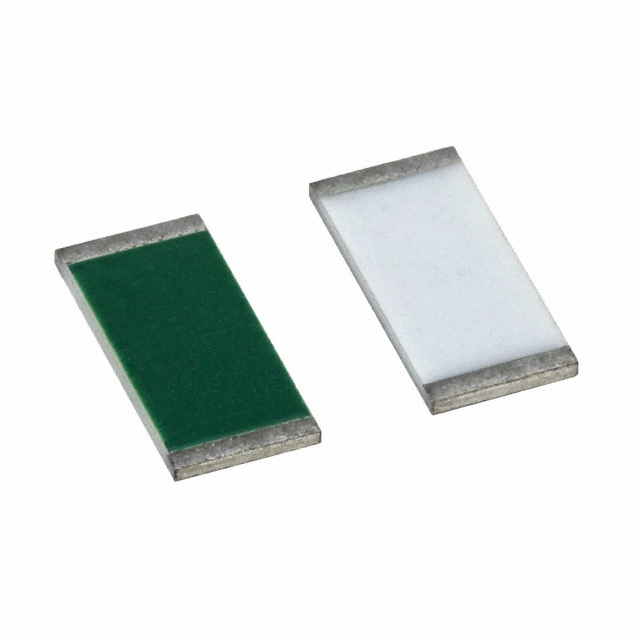

lmages are for reference only.PLT0805Z1002AST5
RES SMD 10K OHM 0.05% 1/4W 0805
Datasheet0805 (2012 Metric)
60,330 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 kOhms ±0.05% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
PLT0805Z1002AST5
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | PLT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 10 kOhms |
| Tolerance | ±0.05% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PLT0805Z1001AST5 | PLT0805Z1001LBTS | PLT0805Z1002LBTS | PLT0805Z1011LBTS |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES SMD 1K OHM 0.05% 1/4W 0805 | RES SMD 1K OHM 0.01% 1/4W 0805 | RES SMD 10K OHM 0.01% 1/4W 0805 | RES SMD 1.01KOHM 0.01% 1/4W 0805 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
