PLTT0805Z2492AGT5

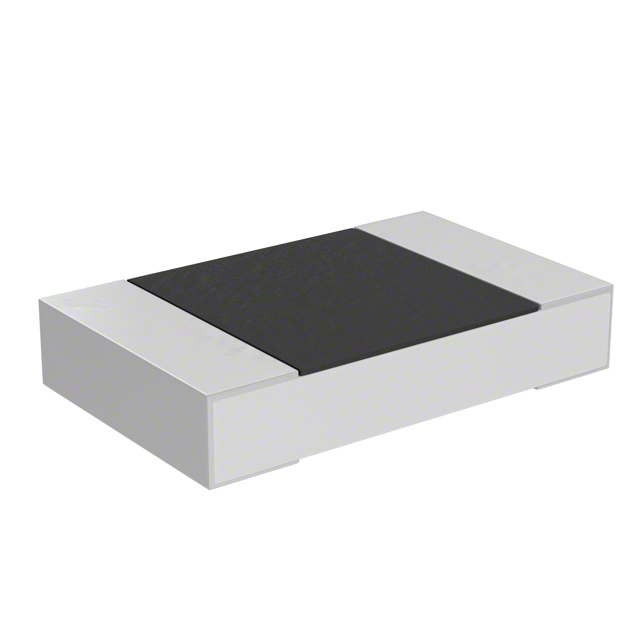

lmages are for reference only.PLTT0805Z2492AGT5
RES SMD 24.9KOHM 0.05% 1/4W 0805
Datasheet0805 (2012 Metric)
87,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
24.9 kOhms ±0.05% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Anti-Corrosive, Flame Proof, Moisture Resistant, Safety Thin Film
PLTT0805Z2492AGT5
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Dale Thin Film |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Dale Thin Film |
| Series | PLTT |
| Resistance | 24.9 kOhms |
| Tolerance | ±0.05% |
| Power (Watts) | 0.25W, 1/4W |
| Composition | Thin Film |
| Features | Anti-Corrosive, Flame Proof, Moisture Resistant, Safety |
| Temperature Coefficient | ±5ppm/°C |
| Operating Temperature | -55°C ~ 215°C |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Ratings | - |
| Size / Dimension | 0.080" L x 0.050" W (2.03mm x 1.27mm) |
| Height - Seated (Max) | 0.033" (0.84mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PLTT0805Z2401AGT5 | PLTT0805Z2401QGT5 | PLTT0805Z2402AGT5 | PLTT0805Z2402QGT5 |
| Manufacturer | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RES SMD 2.4K OHM 0.05% 1/4W 0805 | RES SMD 2.4K OHM 0.02% 1/4W 0805 | RES SMD 24K OHM 0.05% 1/4W 0805 | RES SMD 24K OHM 0.02% 1/4W 0805 |
| Series | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film | Vishay Dale Thin Film |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
