Product CatalogPart Number
PM-500A090
Manufacturer
Volgen + FurunoDescription
DC DC CONVERTER 9V 500MA
Datasheet
DatasheetPackage
3-SIP Module
In Stock
13,138 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

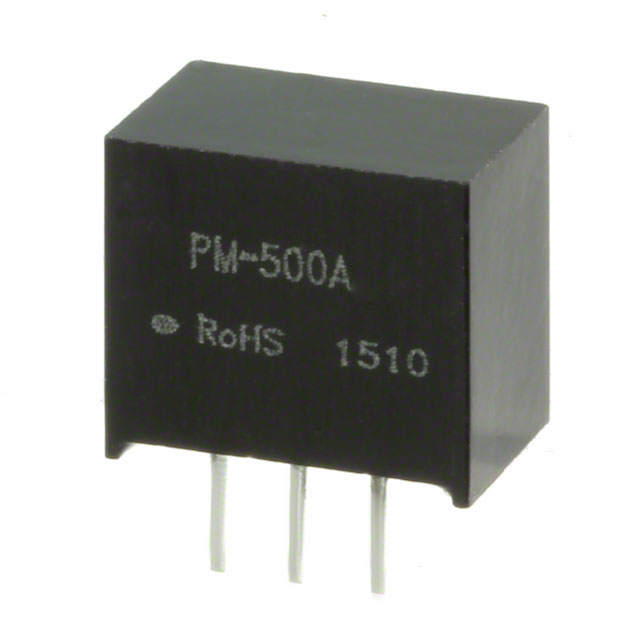

PM-500A090
PM-500A090
lmages are for reference only.Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 9V 500mA 11V - 32V Input
Quick Inquiry
PM-500A090
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Volgen + Furuno |
| Series | PM-500A |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 500mA |
| Power (Watts) | - |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 95% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.46" L x 0.30" W x 0.40" H (11.6mm x 7.6mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | PM-500 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | PM-500A120 | PM-500A120 | PM-500A150 | PM-500A150 |
| Manufacturer | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 12V | DC DC CONVERTER 12V | DC DC CONVERTER 15V | DC DC CONVERTER 15V |
| Series | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno | Volgen + Furuno |
| Packaging | Tube | Tube | Tube | Tube |
