PM-F44
lmages are for reference only.PM-F44
SENSOR OPT SLOT NPN MODULE
DatasheetModule, Wire Leads, Slot Type
70,681 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optical Sensor Through-Beam 0.197" (5mm) NPN - Dark-ON/Light-ON - Selectable Module, Wire Leads, Slot Type
PM-F44
| Category | Sensors, Transducers - Optical Sensors - Photointerrupters Slot Type Transistor Output |
| Manufacturer | Panasonic Industrial Automation Sales |
| Series | PM-44 |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| Sensing Distance | 0.197" (5mm) |
| Sensing Method | Through-Beam |
| Output Configuration | NPN - Dark-ON/Light-ON - Selectable |
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Collector (Ic) (Max) | 15 mA |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Response Time | 20µs |
| Operating Temperature | -25°C ~ 55°C |
| Mounting Type | Chassis Mount |
| Package / Case | Module, Wire Leads, Slot Type |
| Type | Unamplified |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

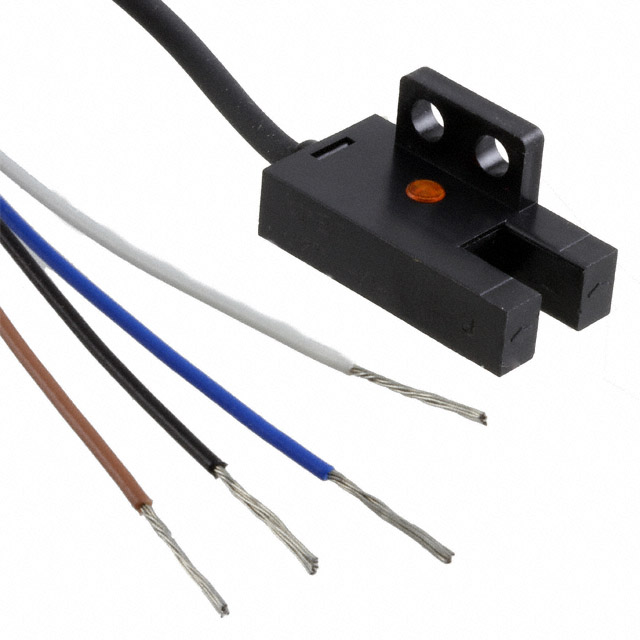

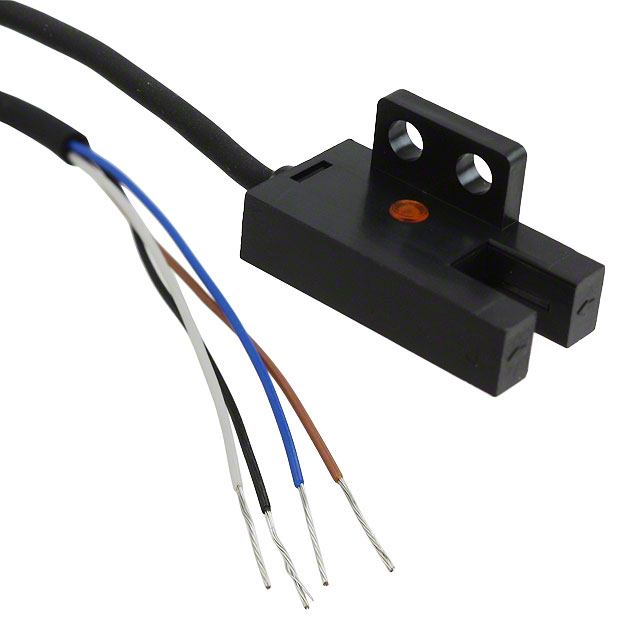

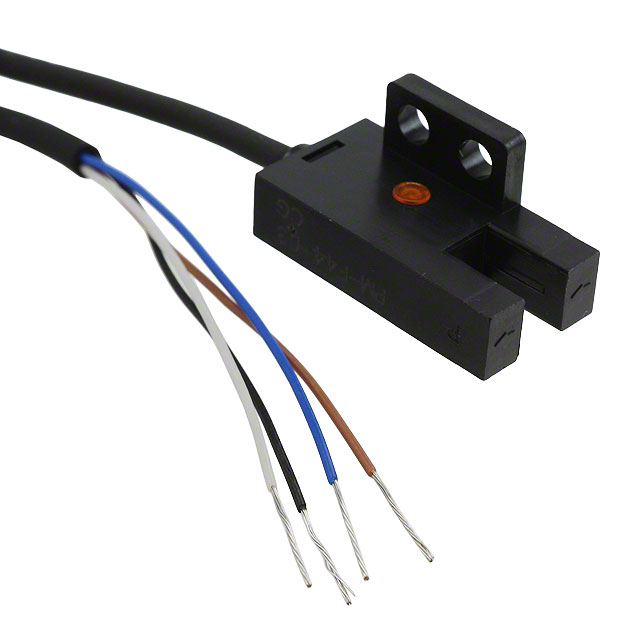

| Part Number | PM-F44-C3 | PM-F44P | PM-F44P-C3 | PM-F24 |
| Manufacturer | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales | Panasonic Industrial Automation Sales |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR OPT SLOT NPN MODULE | SENSOR OPT SLOT PNP MODULE | SENSOR OPT SLOT NPN MODULE | SENSOR OPT SLOT NPN MODULE |
| Series | PM-44 | PM-44 | PM-44 | PM-24 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
