PM1206C

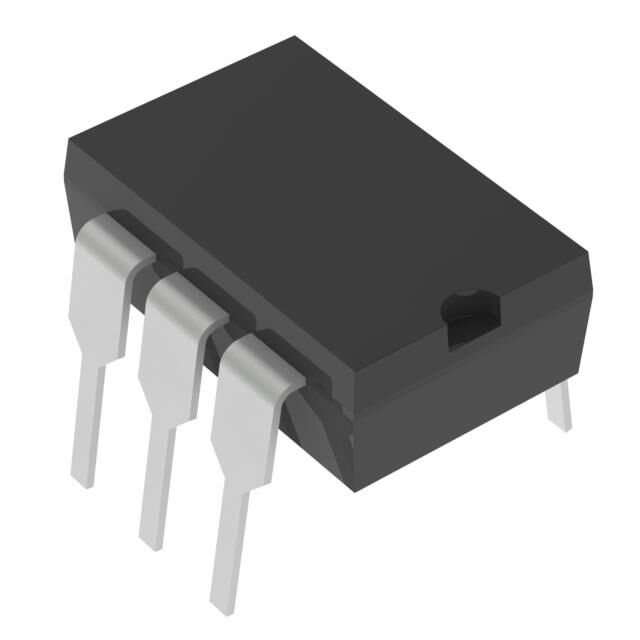

lmages are for reference only.PM1206C
SSR RELAY SPDT 500MA 0-600V
Datasheet6-DIP (0.300", 7.62mm)
92,403 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPDT (1 Form C) 6-DIP (0.300", 7.62mm)
PM1206C
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | IXYS Integrated Circuits Division |
| Series | PM |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Circuit | SPDT (1 Form C) |
| Output Type | AC, Zero Cross |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 V ~ 600 V |
| Load Current | 500 mA |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 6-DIP (0.300", 7.62mm) |
| Supplier Device Package | 6-DIP |
| Approval Agency | CSA, UL |
| Grade | - |
| Qualification | - |
| Base Product Number | PM1206 |
| On-State Resistance (Max) | - |
| Product Attribute |  |
 |
|
 |
| Part Number | PM1206 | PM1206S | PM1206STR | PM1204 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | SSR RELAY SPST-NO 500MA 0-600V | SSR RELAY SPST-NO 500MA 0-600V | SSR RELAY SPST-NO 500MA 0-600V | SSR RELAY SPST-NO 500MA 0-400V |
| Series | PM | PM | PM | PM |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
