Product CatalogPart Number
PM1210-121J
Manufacturer
Bourns Inc.Description
FIXED IND 120UH 70MA 110 OHM SMD
Datasheet
DatasheetPackage
1210 (3225 Metric)
In Stock
87,360 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PM1210-121J
PM1210-121J

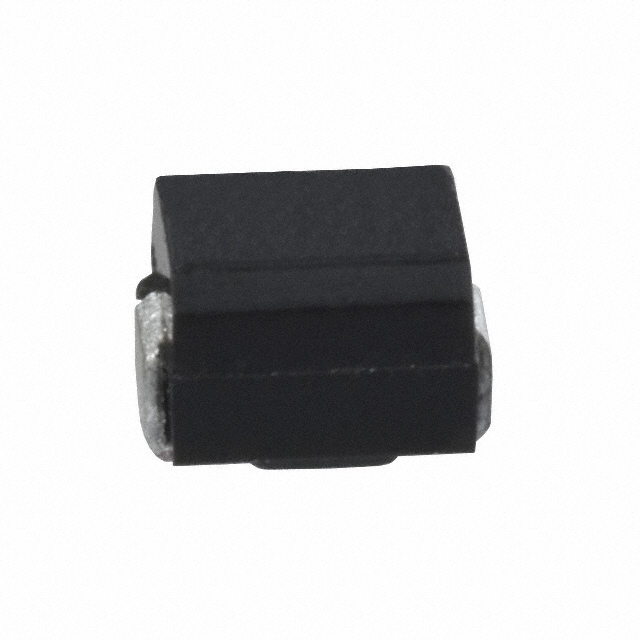

lmages are for reference only.Payment Methods
Delivery Services
120 µH Unshielded Drum Core, Wirewound Inductor 70 mA 110Ohm Max 1210 (3225 Metric)
Quick Inquiry
PM1210-121J
Specifications
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Bourns Inc. |
| Series | PM1210 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS non-compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 70 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 110Ohm Max |
| Q @ Freq | 20 @ 796kHz |
| Frequency - Self Resonant | 10MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 125°C |
| Inductance Frequency - Test | 796 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | 1210 |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Base Product Number | PM1210 |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|
| Part Number | PM1210-121J-RC | PM1210-100J | PM1210-100J-RC | PM1210-101J |
| Manufacturer | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | FIXED IND 120UH 55MA 11 OHM SMD | FIXED IND 10UH 150MA 2.5 OHM SMD | FIXED IND 10UH 140MA 2.1 OHM SMD | FIXED IND 100UH 40MA 10 OHM SMD |
| Series | Bourns Inc. | Bourns Inc. | Bourns Inc. | Bourns Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
