PMA2-153LN+
lmages are for reference only.PMA2-153LN+
IC AMP LTE 500MHZ-15GHZ MC1631-1
Datasheet8-TFDFN Exposed Pad
55,597 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN 500MHz ~ 15GHz MC1631-1
PMA2-153LN+
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 500MHz ~ 15GHz |
| P1dB | 15.3dBm |
| Gain | 12.5dB |
| Noise Figure | 3.8dB |
| RF Type | LTE, Radar, SATCOM, UMTS, WiFi, WiMAX, WLAN |
| Voltage - Supply | 5V, 6V |
| Current - Supply | 66mA |
| Test Frequency | 500MHz |
| Mounting Type | Surface Mount |
| Package / Case | 8-TFDFN Exposed Pad |
| Supplier Device Package | MC1631-1 |
| Base Product Number | PMA2 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

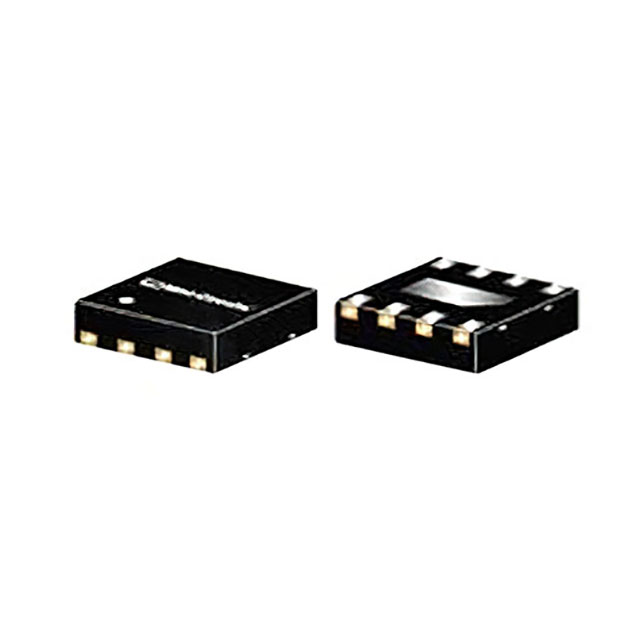

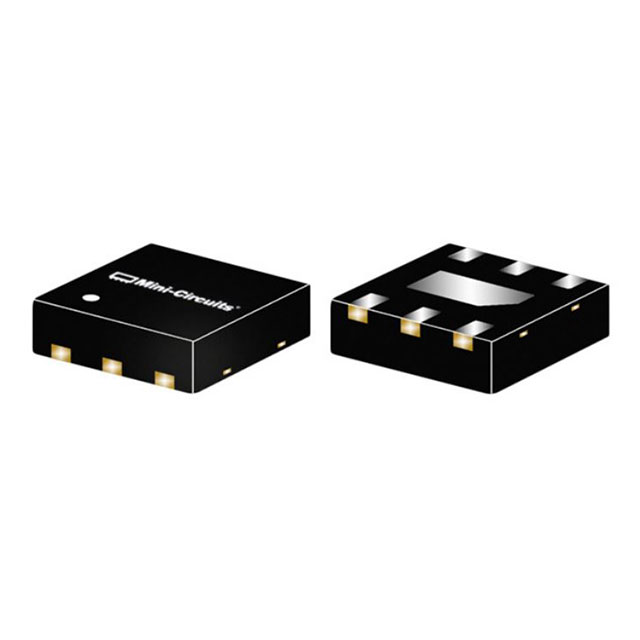

| Part Number | PMA2-123LN+ | PMA2-123LN5+ | PMA2-133LN+ | PMA2-162LN+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP LTE 500MHZ-12GHZ MC1631-1 | IC AMP LTE 500MHZ-12GHZ MC1631-1 | IC RF AMP RADAR 10GHZ-13GHZ 6TDF | IC AMP GPS 700MHZ-1.6GHZ MC1631 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
