PNZ12700S
lmages are for reference only.PNZ12700S
SENSOR PHOTO 800NM TOP VIEW AXL
DatasheetAxial, Flat Leads
17,365 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Phototransistors 800nm Top View Axial, Flat Leads
PNZ12700S
| Category | Sensors, Transducers - Optical Sensors - Phototransistors |
| Manufacturer | Panasonic Electronic Components |
| Series | - |
| Packaging | |
| RoHS Status | |
| Voltage - Collector Emitter Breakdown (Max) | 20 V |
| Current - Collector (Ic) (Max) | 20 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Wavelength | 800nm |
| Viewing Angle | 28° |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Operating Temperature | - |
| Package / Case | Axial, Flat Leads |
| Base Product Number | - |
| Power - Max | 50 mW |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PNZ102 | PNZ107 | PNZ108 | PNZ108CL |
| Manufacturer | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components | Panasonic Electronic Components |
| RoHS Status | ||||

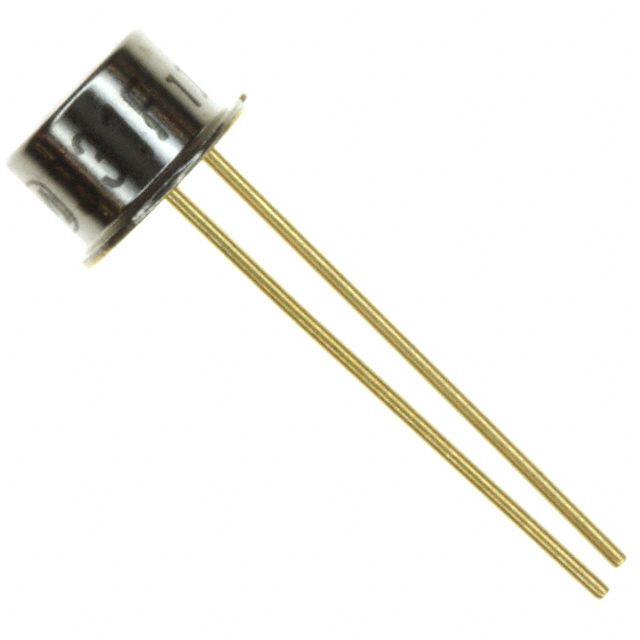

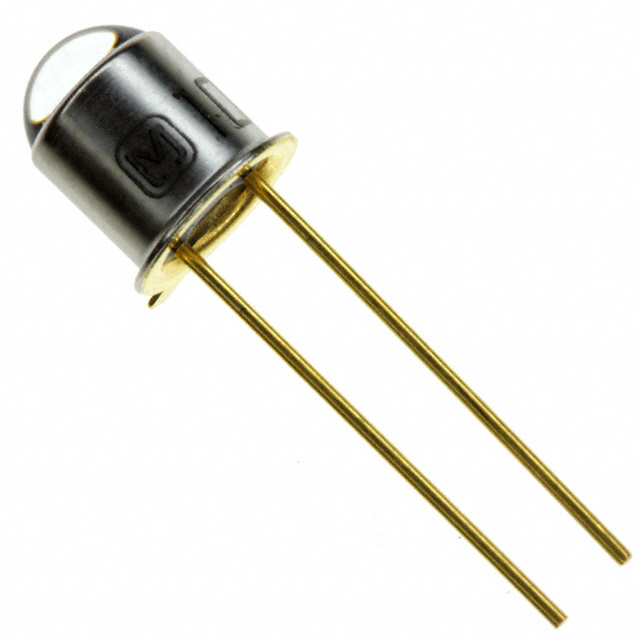

| Description | SENSOR PHOTO 800NM TOP TO206AA | SENSOR PHOTO 900NM TOP TO18-2 | SENSOR PHOTO 900NM TOP TO206AA | SENSOR PHOTO 900NM TOP TO206AA |
| Series | - | - | - | - |
| Packaging |
