Product CatalogPart Number
PPXD90000
Manufacturer
Passive PlusDescription
8.0PF-90PF, 9.5MM SIDE ADJUST, 2
Datasheet
DatasheetPackage
-
In Stock
76,614 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PPXD90000
PPXD90000
lmages are for reference only.Payment Methods
Delivery Services
8 ~ 90pF Trimmer Capacitor 100 V Side Through Hole
Quick Inquiry
PPXD90000
Specifications
| Category | Capacitors - Trimmers-Variable Capacitors - |
| Manufacturer | Passive Plus |
| Series | FILMTRIM® |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Capacitance Range | 8 ~ 90pF |
| Adjustment Type | Side |
| Voltage - Rated | 100 V |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Q @ Freq | 1500 @ 1MHz |
| Size / Dimension | 0.370" Dia (9.40mm) |
| Height - Seated (Max) | 0.488" (12.40mm) |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Features | General Purpose |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

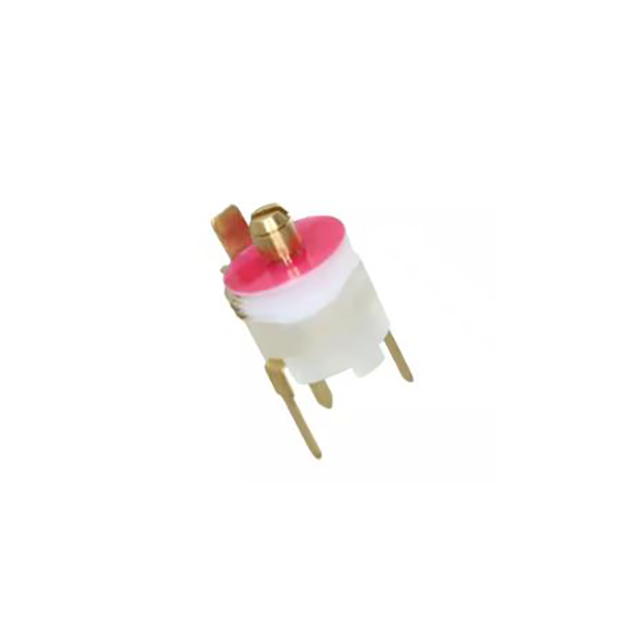

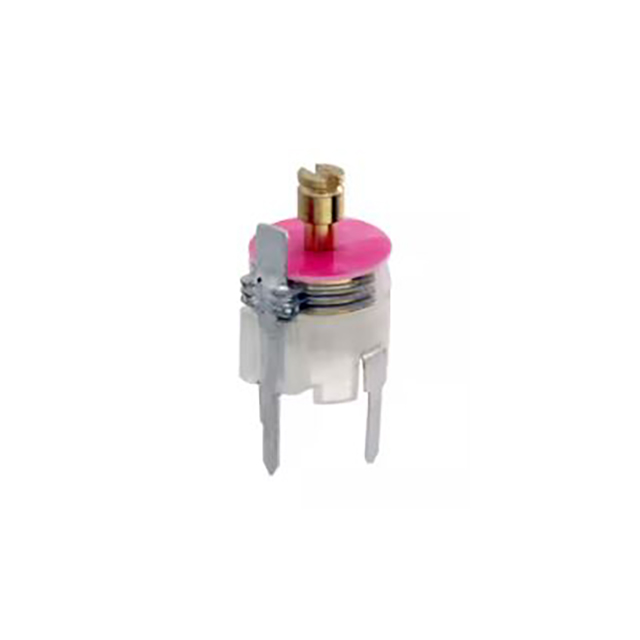

| Part Number | PPXE27000 | PPXE27000NM | PPXE36000NM | PPXE45000NM |
| Manufacturer | Passive Plus | Passive Plus | Passive Plus | Passive Plus |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | 3.9 - 27PF, 7.5 MM, 200VDC, FILM | 3.9 - 27PF, NON-MAGNETIC, 7.5 MM | 4.5 - 36PF, NON-MAGNETIC, 7.5 MM | 5.0 - 45PF, NON-MAGNETIC, 7.5 MM |
| Series | FILMTRIM® | FILMTRIM® | FILMTRIM® | FILMTRIM® |
| Packaging | Box | Box | Box | Box |
