PQ025EH02ZZ
lmages are for reference only.PQ025EH02ZZ
IC REG LINEAR 2.5V 2A TO263
DatasheetTO-263-6, D2PAK (5 Leads + Tab), TO-263BA
57,106 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 2A TO-263
PQ025EH02ZZ
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS non-compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 2 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263 |
| Base Product Number | PQ025 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

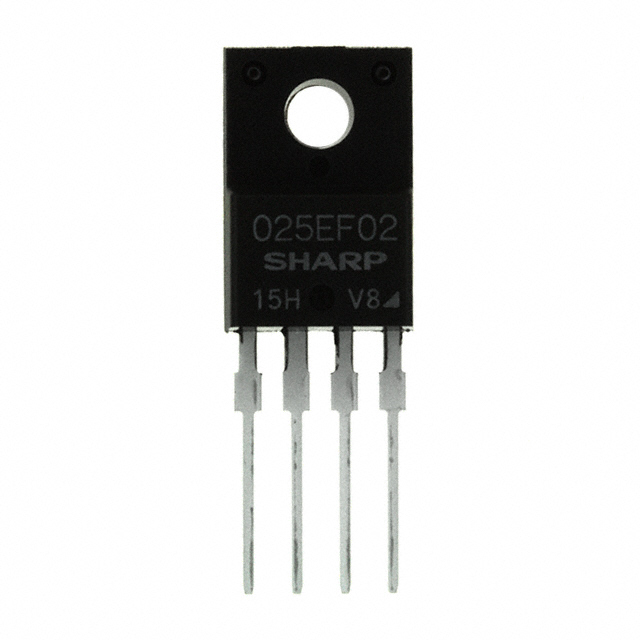

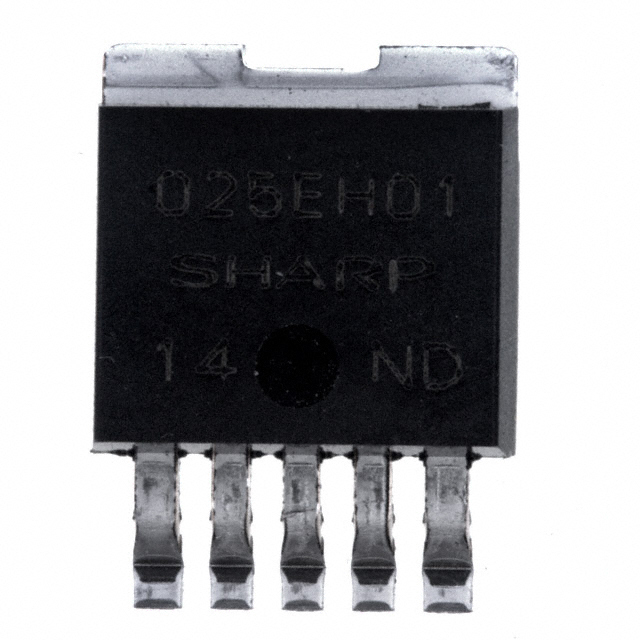

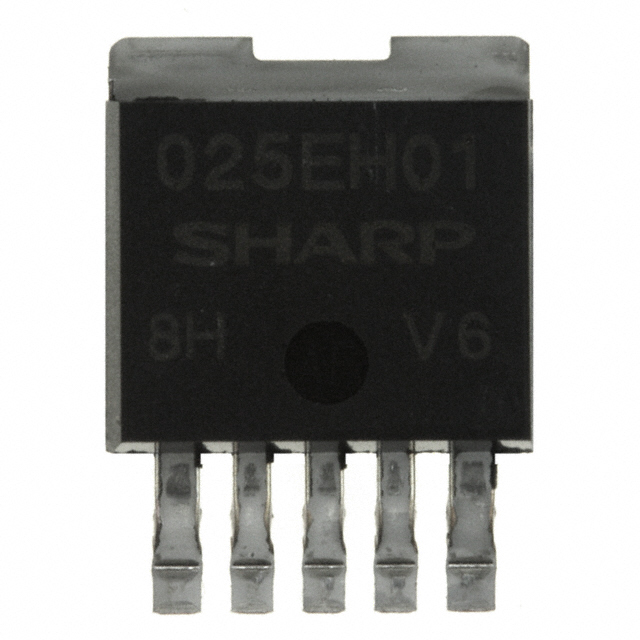

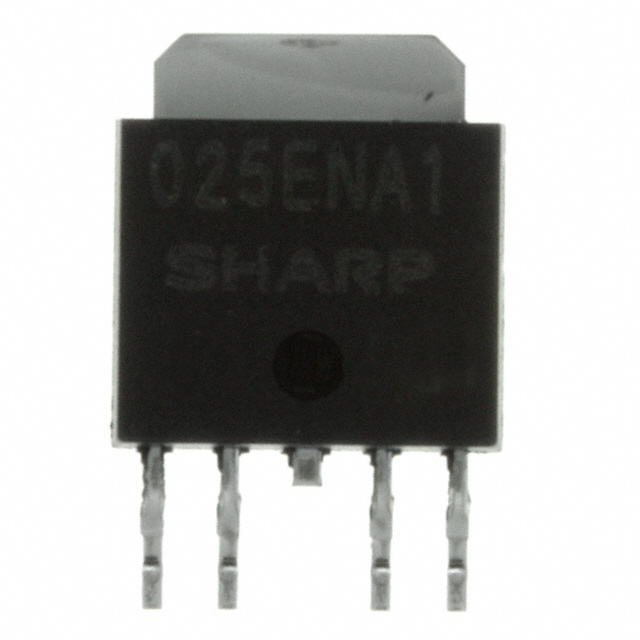

| Part Number | PQ025EH01ZPH | PQ025EH01ZZ | PQ025EF02SZH | PQ025ENA1ZPH |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | |||
| Description | IC REG LINEAR 2.5V 1A TO263 | IC REG LINEAR 2.5V 1A TO263 | IC REG LINEAR 2.5V 2A TO220-4 | IC REG LINEAR 2.5V 1A SC63 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Cut Tape (CT) | Tube | Tube | Cut Tape (CT) |
