PQ05VY3H3ZPH

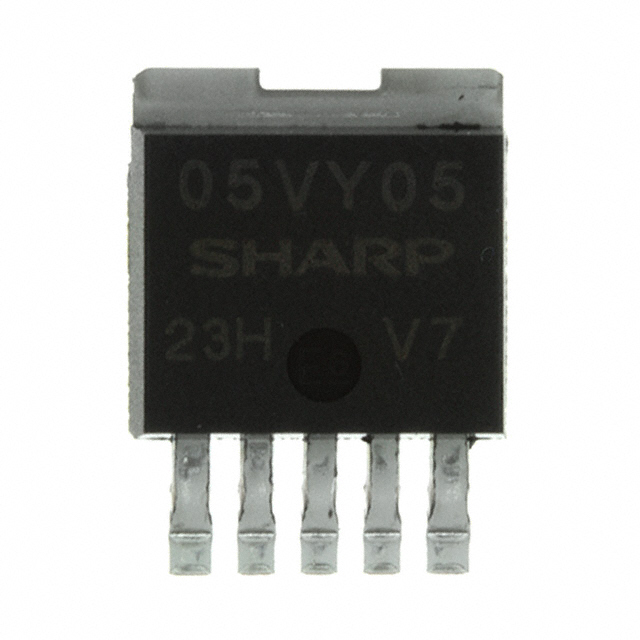

lmages are for reference only.PQ05VY3H3ZPH
IC REG LINEAR POS ADJ 3.5A TO263
DatasheetTO-263-6, D2PAK (5 Leads + Tab), TO-263BA
42,988 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 3.5A TO-263
PQ05VY3H3ZPH
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.5V @ 3.5A |
| Current - Output | 3.5A |
| Current - Quiescent (Iq) | 10 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -20°C ~ 80°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D2PAK (5 Leads + Tab), TO-263BA |
| Supplier Device Package | TO-263 |
| Base Product Number | PQ05 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PQ05VY053ZPH | PQ010FZ5MZZ | PQ010GN01ZPH | PQ012FZ01ZZ |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC REG LINEAR POS ADJ 5A TO263 | IC REG LINEAR 1V 500MA SC63 | IC REG LINEAR 1V 1A SC63 | IC REG LINEAR 1.2V 1A SC63 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
