PQ070XZ02ZZH
lmages are for reference only.PQ070XZ02ZZH
IC REG LINEAR POS ADJ 2A SC63
DatasheetTO-252-6, DPAK (5 Leads + Tab)
90,398 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 2A SC-63
PQ070XZ02ZZH
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 7V |
| Voltage Dropout (Max) | 0.5V @ 2A |
| Current - Output | 2A |
| Current - Quiescent (Iq) | 2 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Supplier Device Package | SC-63 |
| Base Product Number | PQ070 |
| Current - Supply (Max) | - |
| Product Attribute |  |
|
 |
|

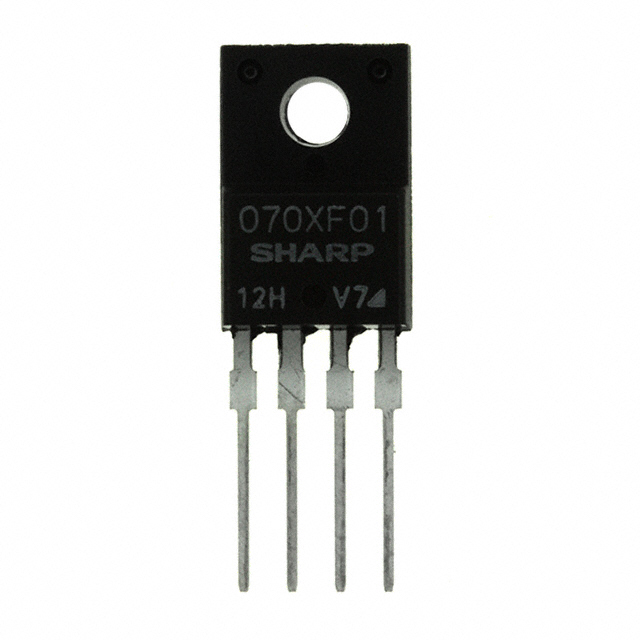

| Part Number | PQ070XF01SZH | PQ070XF02SZH | PQ070XH01ZZ | PQ070XH01ZZH |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | |||

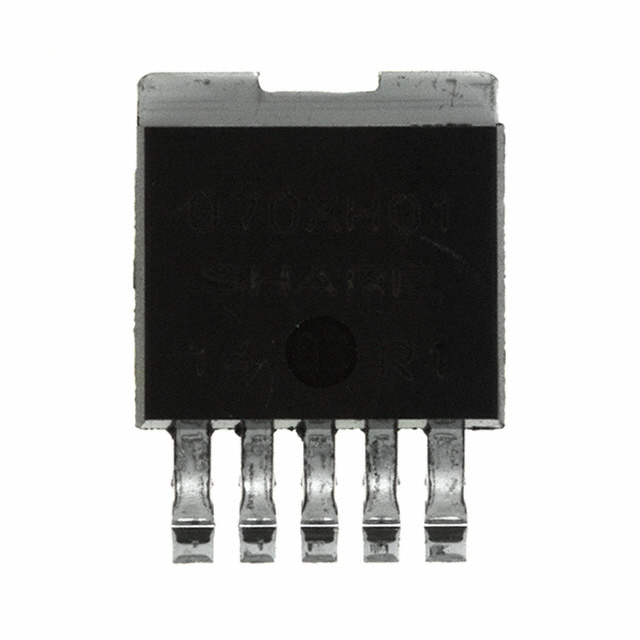

| Description | IC REG LINEAR POS ADJ 1A TO220-4 | IC REG LINEAR POS ADJ 2A TO220-4 | IC REG LINEAR POS ADJ 1A TO263 | IC REG LINEAR POS ADJ 1A TO263 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Tube | Tube | Tube | Tube |
