PQ07VZ5M2ZZH
lmages are for reference only.PQ07VZ5M2ZZH
IC REG LINEAR POS ADJ 500MA SC63
DatasheetTO-252-6, DPAK (5 Leads + Tab)
81,654 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA SC-63
PQ07VZ5M2ZZH
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Sharp Microelectronics |
| Series | - |
| Packaging | Tube |
| RoHS Status | |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | 7V |
| Voltage Dropout (Max) | 0.5V @ 300mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 7 mA |
| PSRR | 60dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -20°C ~ 80°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-6, DPAK (5 Leads + Tab) |
| Supplier Device Package | SC-63 |
| Base Product Number | PQ07 |
| Current - Supply (Max) | - |
| Product Attribute |  |
|
 |
 |

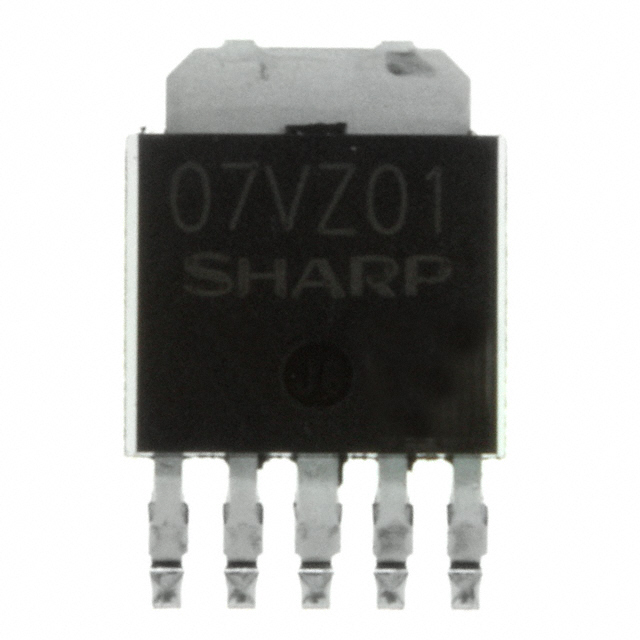

| Part Number | PQ07VZ012ZPH | PQ07VZ012ZZ | PQ010FZ5MZZ | PQ010GN01ZPH |
| Manufacturer | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | IC REG LINEAR POS ADJ 1A SC63 | IC REG LINEAR POS ADJ 1A SC63 | IC REG LINEAR 1V 500MA SC63 | IC REG LINEAR 1V 1A SC63 |
| Series | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics | Sharp Microelectronics |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tape & Reel (TR) |
