PQ108081-331MHF

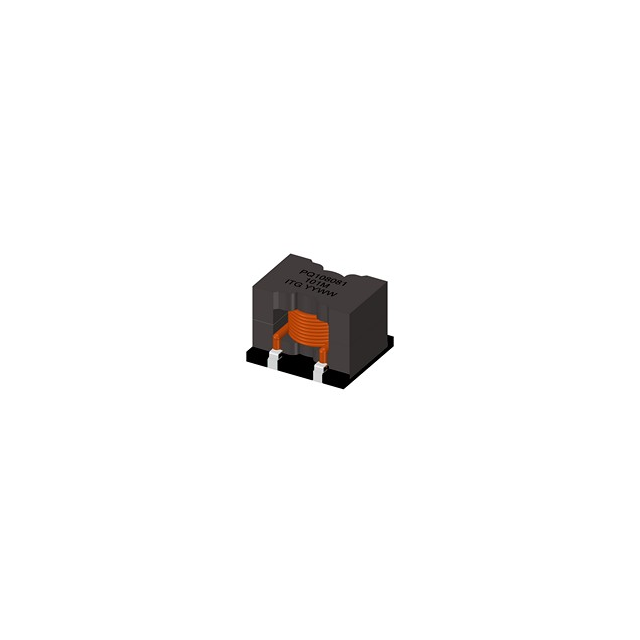

lmages are for reference only.PQ108081-331MHF
FIXED IND 330UH 5.5A 56MOHM SMD
DatasheetNonstandard
69,050 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 µH Shielded Inductor 5.5 A 56mOhm Nonstandard
PQ108081-331MHF
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | ITG Electronics, Inc. |
| Series | PQ108081 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 330 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 5.5 A |
| Current - Saturation (Isat) | 5.3A |
| Shielding | Shielded |
| DC Resistance (DCR) | 56mOhm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -55°C ~ 130°C |
| Inductance Frequency - Test | 300 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 1.100" L x 1.100" W (27.94mm x 27.94mm) |
| Height - Seated (Max) | 0.787" (20.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | PQ108081-100MHF | PQ108081-101MHF | PQ108081-101MHF | PQ108081-120MHF |
| Manufacturer | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 26.8A 3.2MOHM SMD | FIXED IND 100UH 10A 22 MOHM SMD | FIXED IND 100UH 10A 22 MOHM SMD | FIXED IND 12UH 26.8A 3.2MOHM SMD |
| Series | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. | ITG Electronics, Inc. |
| Packaging | Tray | Tray | Tray | Tray |
