PRD-11DG0-48
lmages are for reference only.PRD-11DG0-48
RELAY GEN PURPOSE DPDT 50A 48V
Datasheet-
93,114 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay DPDT (2 Form C) 48VDC Coil Chassis Mount
PRD-11DG0-48
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | PRD |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Chassis Mount |
| Coil Voltage | 48VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Rating (Current) | 50 A |
| Switching Voltage | 600VAC, 125VDC - Nom |
| Load - Max Switching | - |
| Coil Current | 41.7 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | Screw Terminal |
| Seal Rating | - |
| Coil Insulation | Class B |
| Must Operate Voltage | 36 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 40 ms |
| Release Time | 20 ms |
| Operating Temperature | -55°C ~ 80°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | CSA, UL |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 1.15 kOhms |
| Base Product Number | PRD-11DG0 |
| Product Attribute |  |
 |
 |
 |

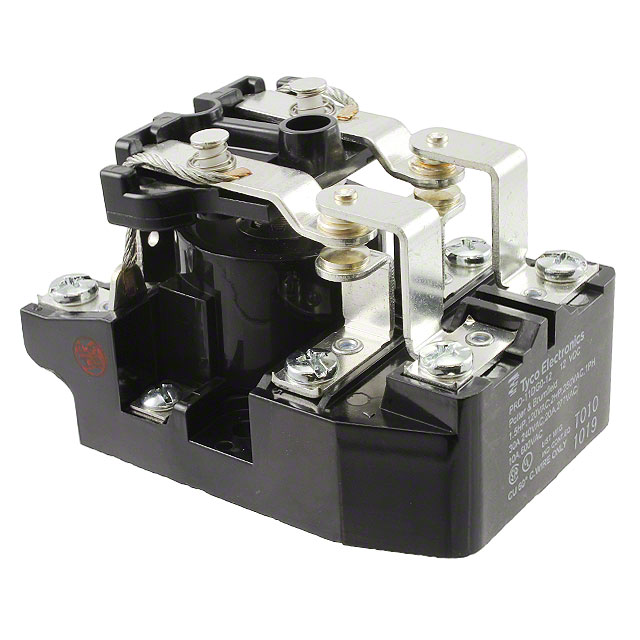

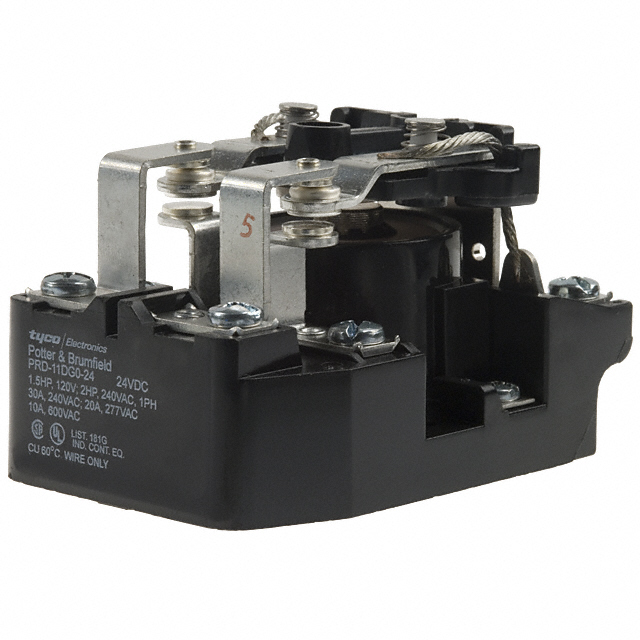

| Part Number | PRD-11DG0-12 | PRD-11DG0-24 | PRD-11AG0-24 | PRD-11AG0-240 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RELAY GEN PURPOSE DPDT 30A 12V | RELAY GEN PURPOSE DPDT 30A 24V | RELAY GEN PURPOSE DPDT 30A 24V | RELAY GEN PURPOSE DPDT 30A 240V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Bulk | Tray | Bulk | Bulk |
