Product CatalogPart Number
PRQ75W-Q48-S5-H-D
Manufacturer
CUI Inc.Description
DC-DC ISOLATED, 75 W, 18~75 VDC
Datasheet
DatasheetPackage
Quarter Brick
In Stock
86,650 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PRQ75W-Q48-S5-H-D
PRQ75W-Q48-S5-H-D
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 5V 15A 18V - 75V Input
Quick Inquiry
PRQ75W-Q48-S5-H-D
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | PRQ75W-D (75W) |
| Packaging | Bag |
| RoHS Status | RoHS Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A |
| Power (Watts) | 75 W |
| Applications | ITE (Commercial) |
| Features | Heat Sink, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 91% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.43" L x 1.58" W x 1.09" H (61.8mm x 40.2mm x 27.7mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 2.25 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | PRQ75W-Q48-S5-B-D | PRQ75W-Q48-S5-D | PRQ75W-Q48-S12-B-D | PRQ75W-Q48-S12-D |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC-DC ISOLATED, 75 W, 18~75 VDC | DC-DC ISOLATED, 75 W, 18~75 VDC | DC-DC ISOLATED, 75 W, 18~75 VDC | DC-DC ISOLATED, 75 W, 18~75 VDC |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Bag | Bag | Bag | Bag |
Customers Also Interested in
Recommended Products
PRQ75W-Q48-S12-B-D
CUI Inc.
PRQ75W-Q48-S12-D
CUI Inc.
PRQ75W-Q48-S12-H-D
CUI Inc.
PRQ75W-Q48-S15-B-D
CUI Inc.

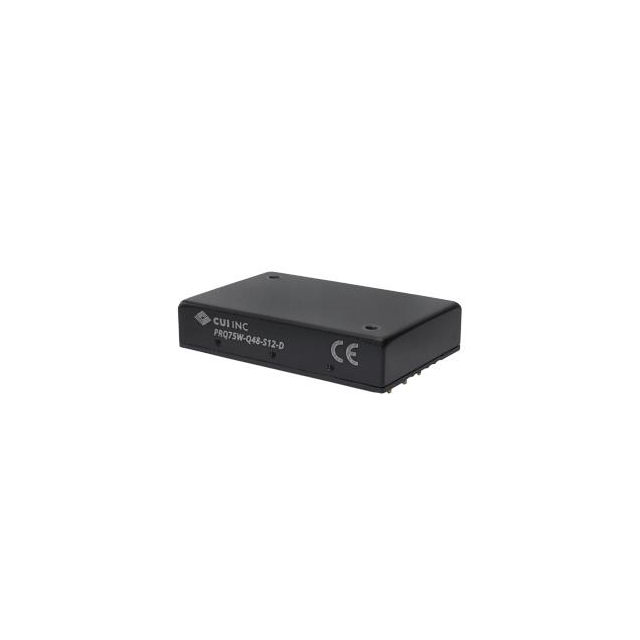

PRQ75W-Q48-S15-D
CUI Inc.
PRQ75W-Q48-S15-H-D
CUI Inc.
PRQ75W-Q48-S24-B-D
CUI Inc.
PRQ75W-Q48-S24-D
CUI Inc.
PRQ75W-Q48-S24-H-D
CUI Inc.
PRQ75W-Q48-S48-B-D
CUI Inc.
PRQ75W-Q48-S48-D
CUI Inc.

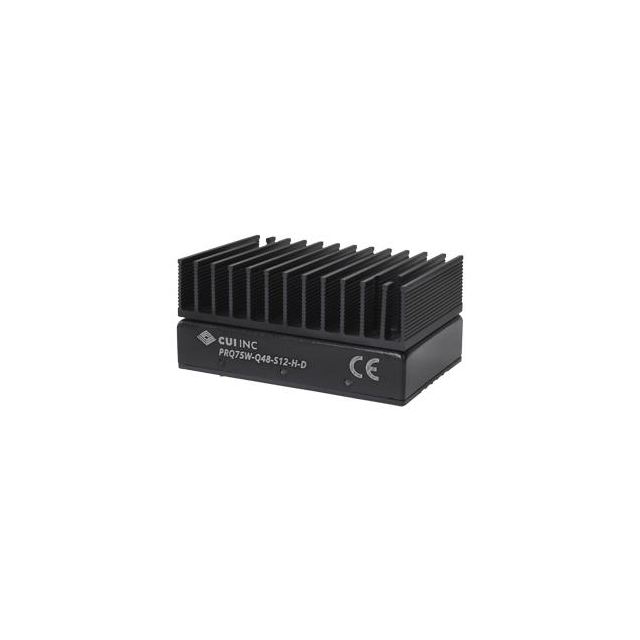

PRQ75W-Q48-S48-H-D
