PS10MH40-502A3030
lmages are for reference only.PS10MH40-502A3030
TRIMMER 5K OHM 0.15W GW SIDE ADJ
Datasheet-
78,895 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5 kOhms 0.15W Gull Wing Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
PS10MH40-502A3030
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PS10 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 5 kOhms |
| Power (Watts) | 0.15W |
| Tolerance | ±30% |
| Temperature Coefficient | ±1500ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Side Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Surface Mount |
| Termination Style | Gull Wing |
| Size / Dimension | Round - 0.406" Dia (10.30mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

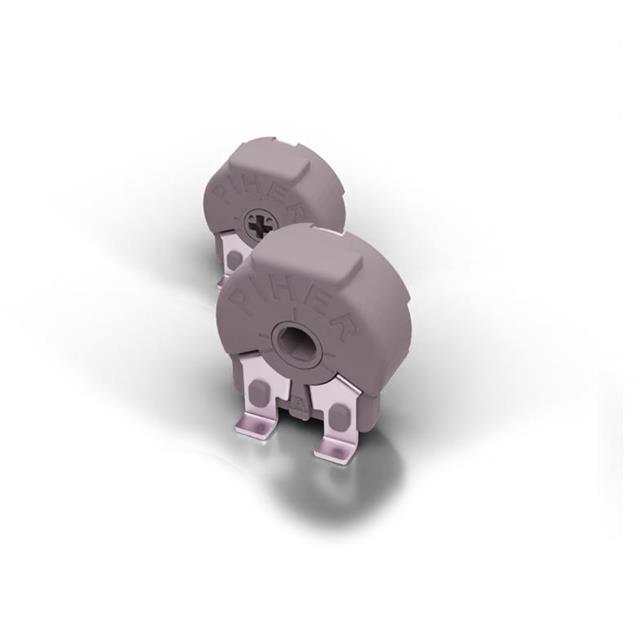

| Part Number | PS10MH40-503A3030 | PS10MH40-102A3030 | PS10MH40-103A3030 | PS10MH40-104A3030 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 50K OHM 0.15W GW SIDE | TRIMMER 1K OHM 0.15W GW SIDE ADJ | TRIMMER 10K OHM 0.15W GW SIDE | TRIMMER 100K OHM 0.15W GW SIDE |
| Series | PS10 | PS10 | PS10 | PS10 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
