PS15NV50-103A3030-PM
lmages are for reference only.PS15NV50-103A3030-PM
TRIMMER 10K OHM 0.25W J LEAD TOP
Datasheet-
34,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
10 kOhms 0.25W, 1/4W J Lead Surface Mount Trimmer Potentiometer Carbon 1.0 Turn Top Adjustment
PS15NV50-103A3030-PM
| Category | Potentiometers, Variable Resistors - Trimmer Potentiometers - |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PS15 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 10 kOhms |
| Power (Watts) | 0.25W, 1/4W |
| Tolerance | ±30% |
| Temperature Coefficient | ±1500ppm/°C |
| Number of Turns | 1.0 |
| Adjustment Type | Top Adjustment |
| Resistive Material | Carbon |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Size / Dimension | Round - 0.591" Dia (15.00mm) |
| Base Product Number | PS15NV50 |
| Product Attribute |  |
 |
 |
 |

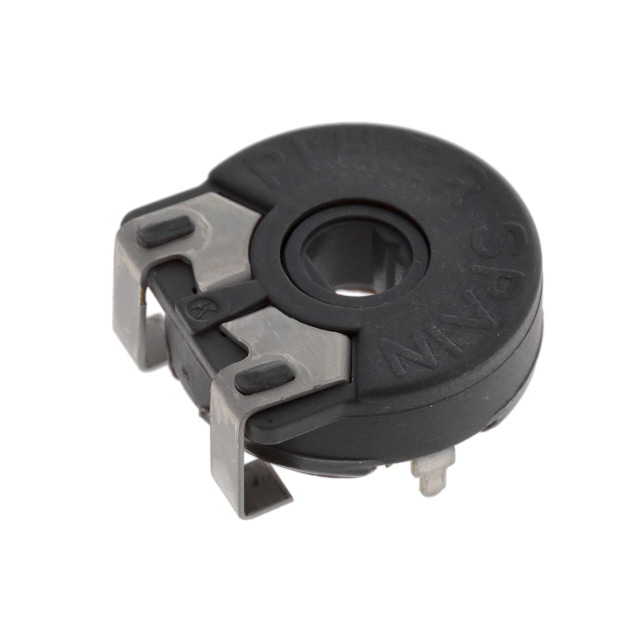

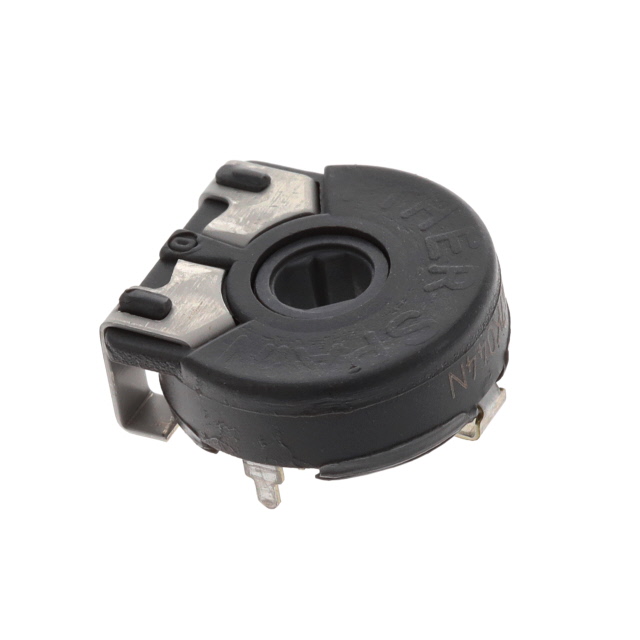

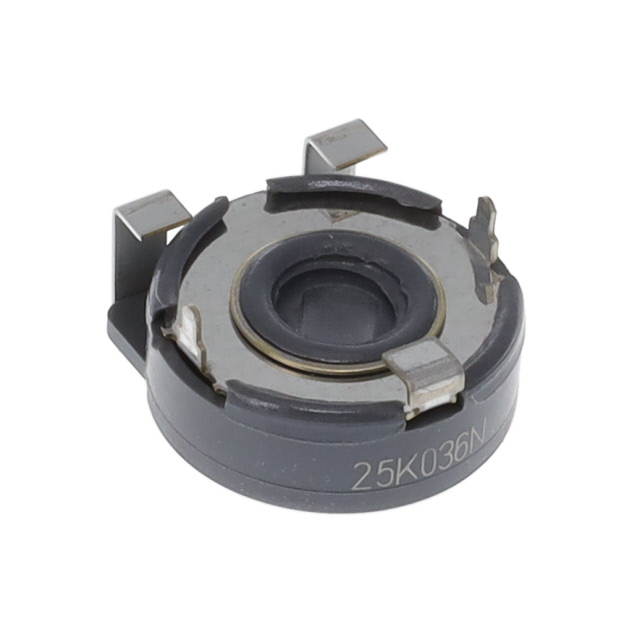

| Part Number | PS15NV60-103A3030-PM | PS15NV60-253A3030 | PS15NV60-473A3030 | TS6X220KT20 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Vishay Sfernice |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRIMMER 10K OHM 0.25W J LEAD TOP | TRIMMER 25K OHM 0.25W J LEAD TOP | TRIMMER 47K OHM 0.25W J LEAD TOP | TRIMMER |
| Series | PS15 | PS15 | PS15 | * |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
