PS2701-1-V-F3-A
Manufacturer
CELDescription
OPTOISOLATOR 3.75KV TRANS 4SMD
Datasheet
DatasheetPackage
4-SMD, Gull Wing
In Stock
59,801 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
PS2701-1-V-F3-A
PS2701-1-V-F3-A
lmages are for reference only.Payment Methods
Delivery Services

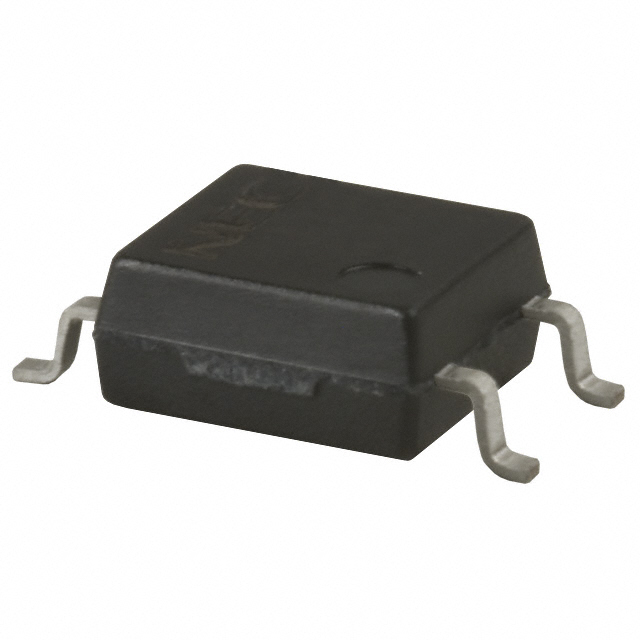

Optoisolator Transistor Output 3750Vrms 1 Channel 4-SMD
Quick Inquiry
PS2701-1-V-F3-A
Specifications
| Category | Isolators - Optoisolators - Transistor-Photovoltaic Output Optoisolators |
| Manufacturer | CEL |
| Series | NEPOC |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Current Transfer Ratio (Min) | 50% @ 5mA |
| Current Transfer Ratio (Max) | 300% @ 5mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 3µs, 5µs |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 40V |
| Current - Output / Channel | 80mA |
| Voltage - Forward (Vf) (Typ) | 1.1V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 300mV |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SMD |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
|
| Part Number | PS2701-1-V-F3-A | PS2701-1-V-F3-H-A | PS2701-1-V-F3-L-A | PS2701-1-V-F3-L-A |
| Manufacturer | Renesas Electronics Corporation | CEL | Renesas Electronics Corporation | CEL |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISOLATOR 3.75KV TRANS 4SMD | OPTOISOLATOR 3.75KV TRANS 4SMD | OPTOISOLATOR 3.75KV TRANS 4SMD | OPTOISOLATOR 3.75KV TRANS 4SMD |
| Series | NEPOC | NEPOC | NEPOC | NEPOC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
