PS2P-LIN-CE-M002-1A0-L0000-ELS120-05
lmages are for reference only.PS2P-LIN-CE-M002-1A0-L0000-ELS120-05

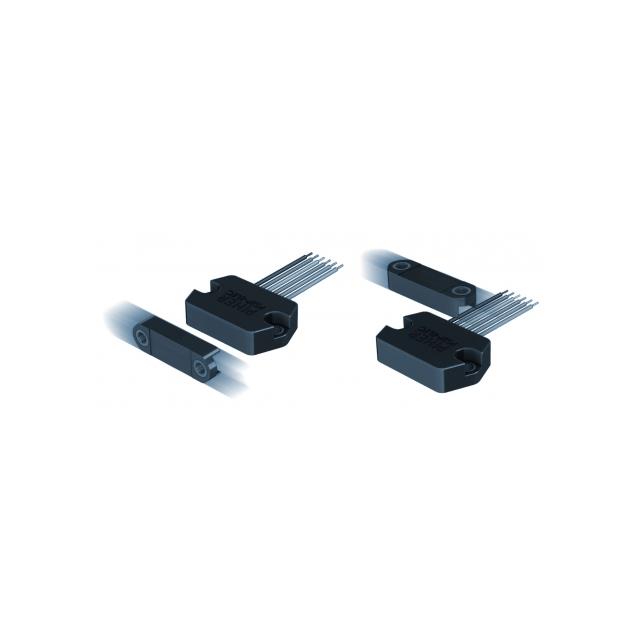

SENSOR LINEAR 12MM WIRE LEADS
DatasheetBox with Wire Leads
60,723 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Linear Position External Magnet, Included Wire Leads
PS2P-LIN-CE-M002-1A0-L0000-ELS120-05
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PS2P-LIN |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Linear Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | - |
| Linear Range | 0 ~ 12mm (0 ~ 0.47") |
| Output | Analog Voltage |
| Output Signal | - |
| Actuator Type | External Magnet, Included |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Wire Leads |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | PS2P |
| Product Attribute |  |
 |
 |
 |
| Part Number | PS2P-LIN-CE-M002-1A0-L0000-ELS120-05-RE | PS2P-LIN-CE-M002-1-A0-L0021-ELS250-05 | PS2P-LIN-CE-M002-2-AA-L0002-ELS120-05 | PS2P-LIN-CE-M002-2-AA-L0016-ELS250-05 |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 2-PIECE TOUCHLESS HALL-EFFECT LI | 2-PIECE TOUCHLESS HALL-EFFECT LI | 2-PIECE TOUCHLESS HALL-EFFECT LI | 2-PIECE TOUCHLESS HALL-EFFECT LI |
| Series | PS2P-LIN | PS2P-LIN | PS2P-LIN | PS2P-LIN |
| Packaging | Bulk | Bulk | Bulk | Bulk |
