PS9307L-AX

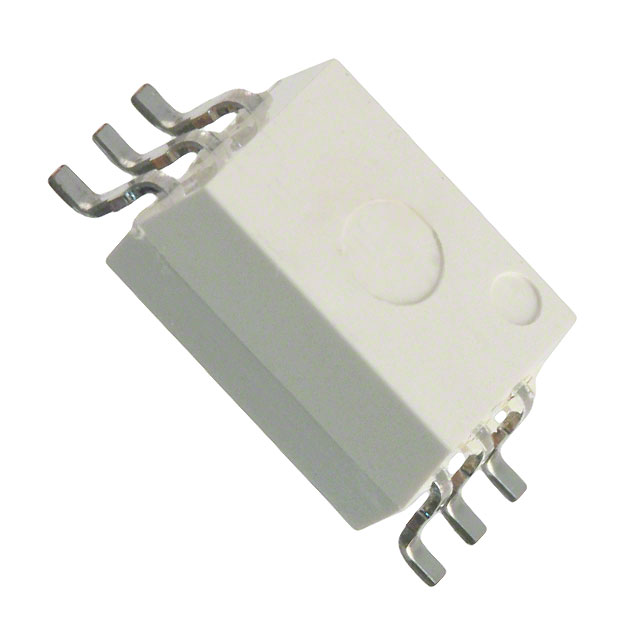

lmages are for reference only.PS9307L-AX
OPTOISO 5KV 1CH GATE DVR 6SDIP
Datasheet6-SOIC (0.268", 6.80mm Width)
99,192 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
600mA Gate Driver Optical Coupling 5000Vrms 1 Channel 6-SDIP
PS9307L-AX
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | Renesas Electronics Corporation |
| Series | NEPOC |
| Packaging | Bag |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 175ns, 175ns |
| Pulse Width Distortion (Max) | 90ns |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Current - Output High, Low | 400mA, 400mA |
| Current - Peak Output | 600mA |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Voltage - Output Supply | 10V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 6-SOIC (0.268", 6.80mm Width) |
| Supplier Device Package | 6-SDIP |
| Approval Agency | CSA, SEMKO, UL |
| Base Product Number | PS9307 |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute |  |
 |
 |
 |
| Part Number | PS9307L-E3-AX | PS9307L-V-E3-AX | PS9307L2-AX | PS9307L2-E3-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5KV 1CH GATE DVR 6SDIP | OPTOISO 5KV 1CH GATE DVR 6SDIP | OPTOISO 5KV 1CH GATE DVR 6SMD | OPTOISO 5KV 1CH GATE DRIVER 6SMD |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bag | Tape & Reel (TR) |
