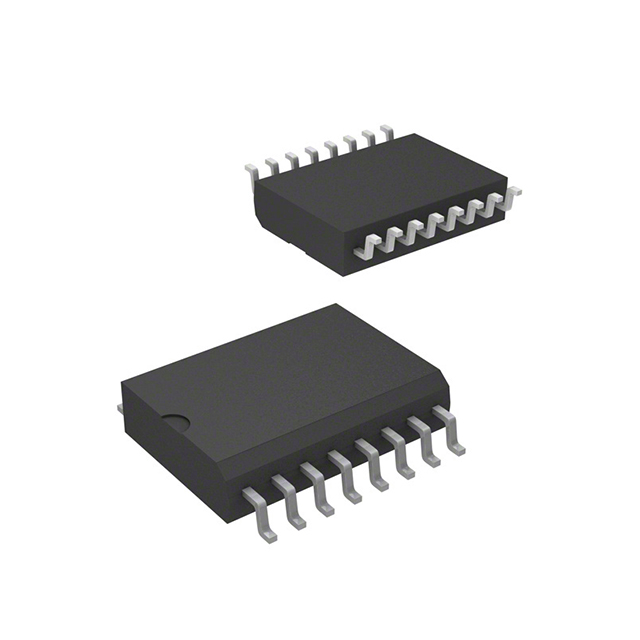

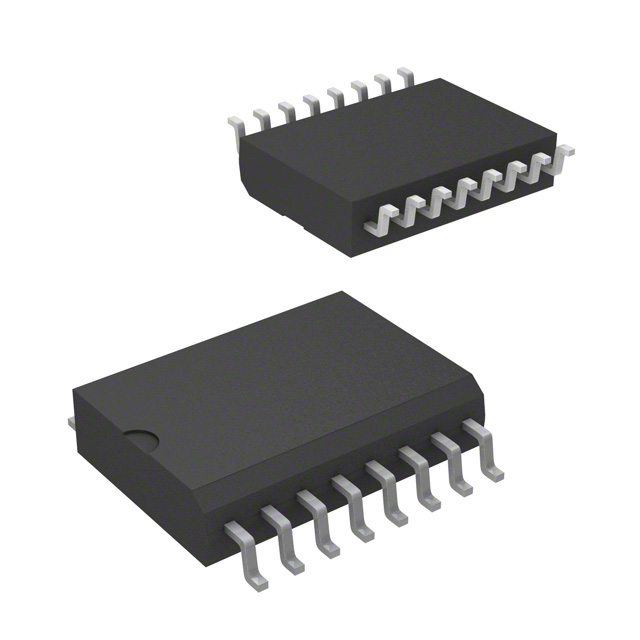

2.5A Gate Driver Optical Coupling 5000Vrms 1 Channel 16-SSOP
PS9402-E3-AX
| Category | Isolators - Isolators Gate Drivers - |
| Manufacturer | CEL |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 100ns |
| Rise / Fall Time (Typ) | 50ns, 50ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.56V |
| Voltage - Output Supply | 15V ~ 30V |
| Grade | - |
| Qualification | - |
| Operating Temperature | -40°C ~ 110°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SSOP |
| Approval Agency | CSA, UL |
| Base Product Number | - |
| Current - DC Forward (If) (Max) | 25 mA |
| Product Attribute | |
 |
 |
|
| Part Number | PS9402-E3-AX | PS9402-AX | PS9402-AX | PS9402-V-AX |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | CEL | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | OPTOISO 5KV 1CH GATE DVR 16SSOP | OPTOISO 5KV 1CH GATE DVR 16SSOP | OPTOISO 5KV 1CH GATE DVR 16SSOP | OPTOISO 5KV 1CH GATE DVR 16SSOP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | CEL | Renesas Electronics Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk | Strip |
