PSC360G2-F1A-C0006-ERA060-REK

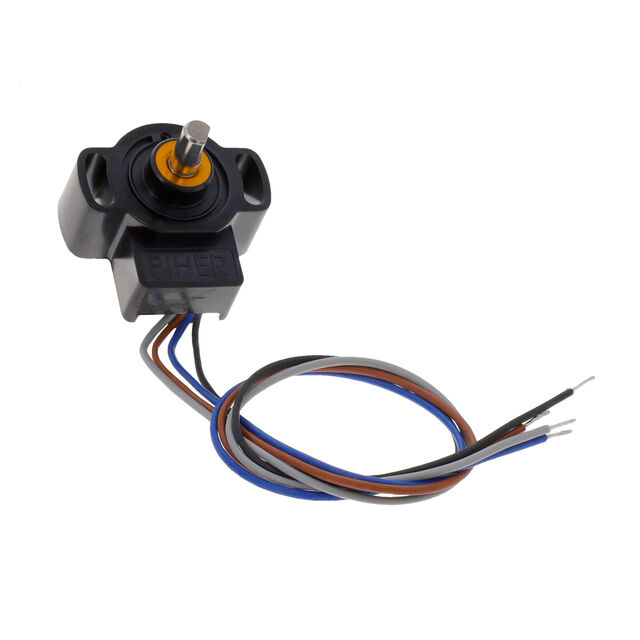

lmages are for reference only.PSC360G2-F1A-C0006-ERA060-REK
HALL-EFFECT POSITION SENSOR (END
DatasheetModule, Flatted Shaft
64,344 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Angle, Linear, Rotary Flatted Shaft Wire Leads
PSC360G2-F1A-C0006-ERA060-REK
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Amphenol Piher Sensing Systems |
| Series | PSC360G2 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| For Measuring | Angle, Linear, Rotary |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 0° ~ 60° |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | Flatted Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 7V ~ 15V |
| Mounting Type | Panel Mount |
| Termination Style | Wire Leads |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Module, Flatted Shaft |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | PSC360G2-F1A-C0006-ERA060-05K | PSC360G2-F1A-C0000-ERA360-05K | PSC360G2-F1A-C0000-ERA360-RE-K | PSC360G2-F1A-C0007-ERA180-05K |
| Manufacturer | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems | Amphenol Piher Sensing Systems |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | HALL-EFFECT POSITION SENSOR (END | SENSOR ANGLE 360DEG WIRE LEADS | SENSOR ANGLE 360DEG WIRE LEADS | SENSOR ANGLE 180DEG WIRE LEADS |
| Series | PSC360G2 | PSC360G2 | PSC360G2 | PSC360G2 |
| Packaging | Bulk | Bulk | Bulk | Bulk |
